Position Switch: Installation: Installation

Check that the gear is shifted to N.

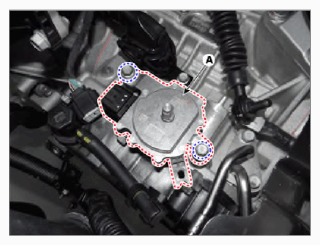

Install the position switch (A).
NOTE: Lightly tighten the mounting bolts so that necessary adjustments can be made.

Courtesy of KIA MOTORS AMERICA, INC.

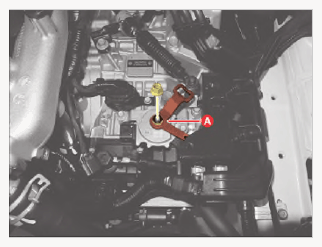

Install the manual control lever (A).
NOTE: Lightly tighten the mounting nut so that necessary adjustments can be made.

Courtesy of KIA MOTORS AMERICA, INC.

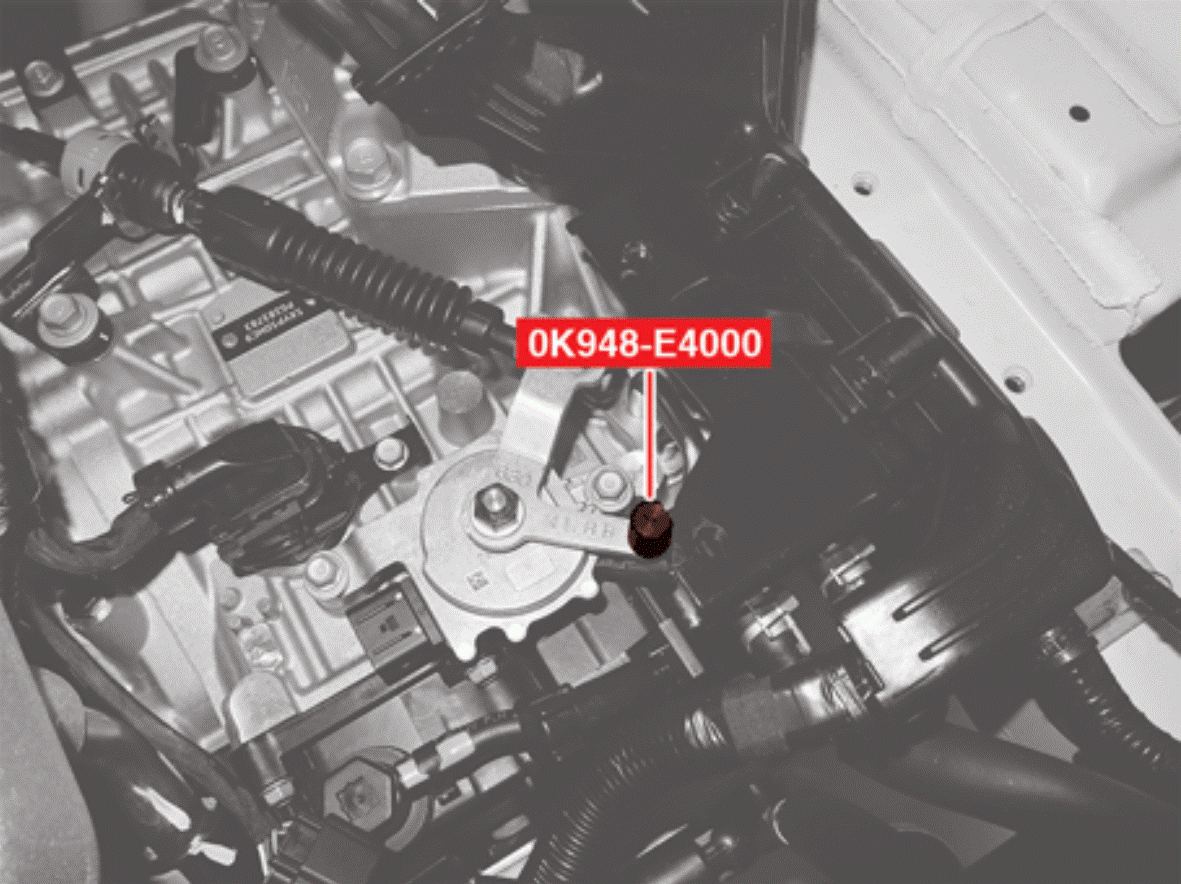

Align the hole in the manual control lever with the "N" position hole of the position switch and then insert the SST position switch guide pin (0K948 - E4000).

Courtesy of KIA MOTORS AMERICA, INC.

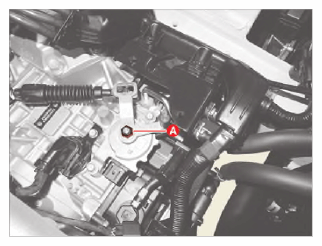

Tighten the manual control lever nut (A) with the specified torque.
Tightening torque:

17.7 - 24.5 N.m (1.8 - 2.5 kgf.m, 13.0 - 18.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

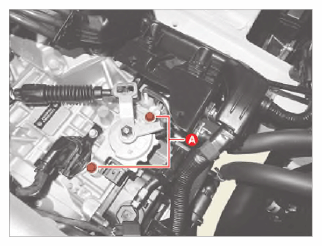

Tighten the position switch bolts (A) with the specified torque.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

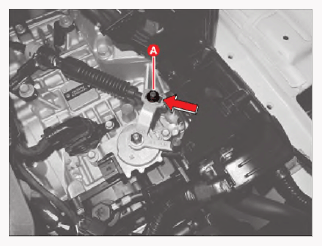

Tighten the nut (A) to the specified torque after removing free play by pushing the shift cable in the direction of the arrow.
Tightening torque:

9.8 - 14.7 N.m (1.0 - 1.5 kgf.m, 7.2 - 10.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

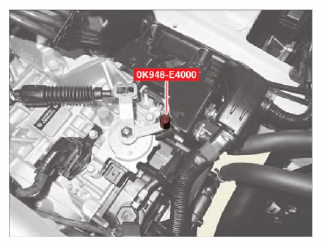

Remove the SST (0K948 - E4000).

Courtesy of KIA MOTORS AMERICA, INC.

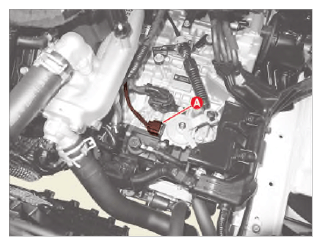

Connect the position switch connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install the battery tray.
(Refer to Body Electrical System - "BATTERY ")
Install the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
Install the battery.
(Refer to Body Electrical System - "BATTERY ")
