Removal & Installation: Installation

  1. Install in the reverse order of removal.
    NOTE:

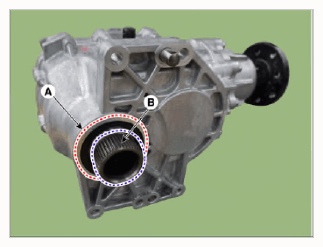

    1. Be careful not to damage the O-ring (A). If the O-ring is damaged, replace with a new one.
    2. Smear and cover splines (B) with molybdenum type high pressure grease.

      GREASE SPL-1 or equivalent

    G15693819Courtesy of KIA MOTORS AMERICA, INC.

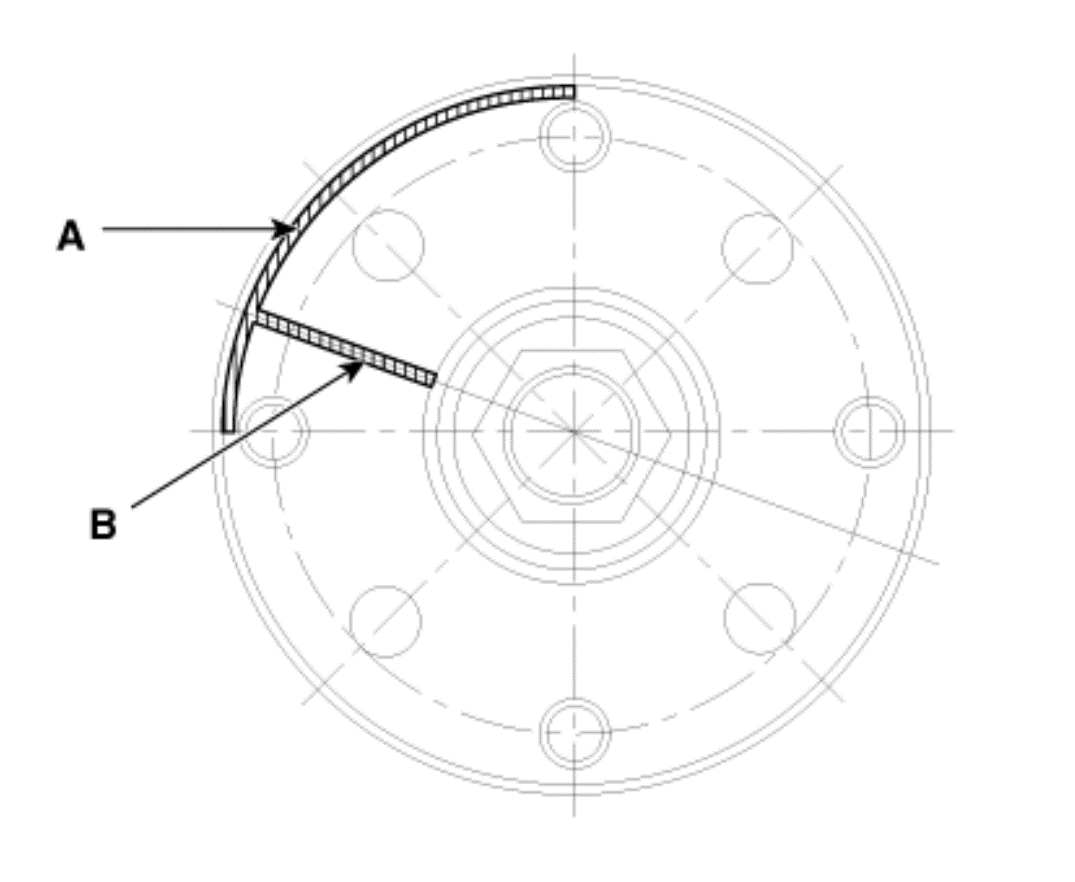

  2. Install the propeller shaft to be near runout marking (Transfer assembly 1ea (A), propeller shaft 1ea (B)) each other.
