Removal & Installation: Removal

  1. Disconnect the battery negative (-) terminal.
  2. Remove the center fascia lower panel.

    (Refer to Body - "CENTER FASCIA PANEL .")

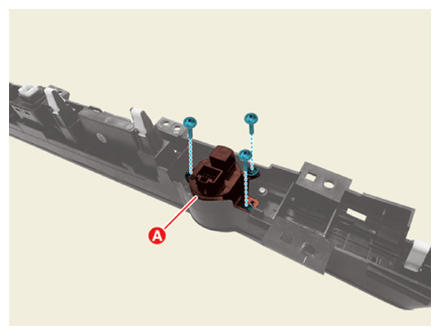

  3. Remove the start/stop button (SSB) (A) after removing the mounting screws.
G14806155Courtesy of KIA MOTORS AMERICA, INC.
