Removal & Installation: Installation

Install in the reverse order of removal.
- Install the ETC module with the specified torque.
- If the ETC module is dropped, it may cause internal damage. Do not use it.

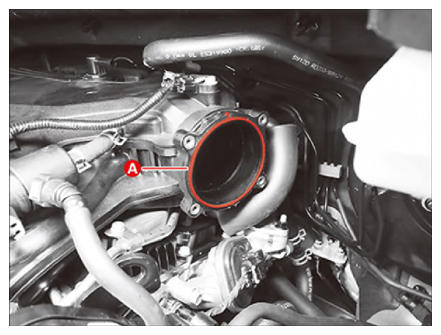

- Check the seal ring (A) before installing the ETC module.
Courtesy of KIA MOTORS AMERICA, INC.

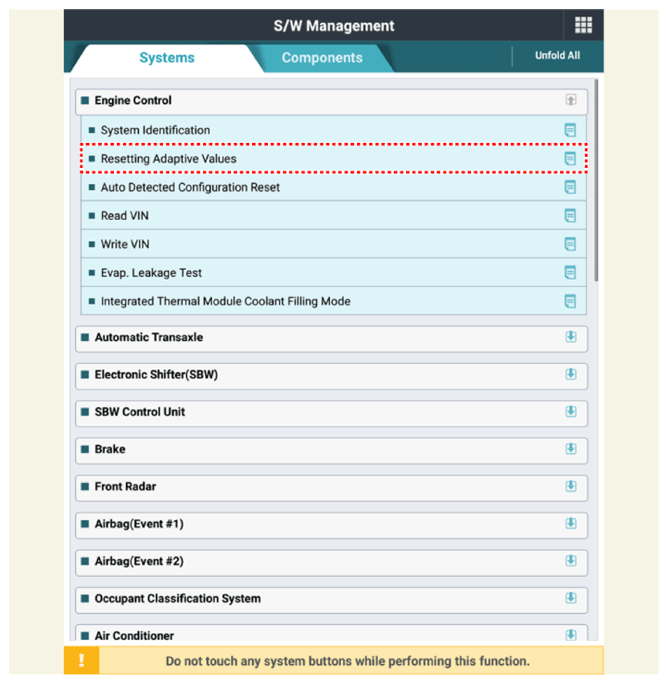

Reset the ECM adaptive values after replacing the ETC.

Courtesy of KIA MOTORS AMERICA, INC.
Perform the ETC learning procedure.
(Refer to Electronic Throttle Control (ETC) Module - "ADJUSTMENT ")
