Engine Control Module (ECM): Adjustment

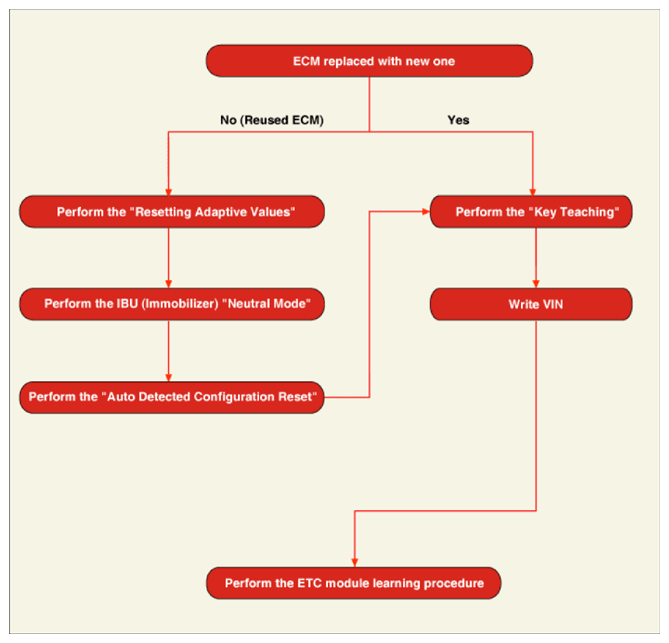

NOTE: Perform the following procedure when replacing ECM (New ECM/Reused ECM).

Courtesy of KIA MOTORS AMERICA, INC.

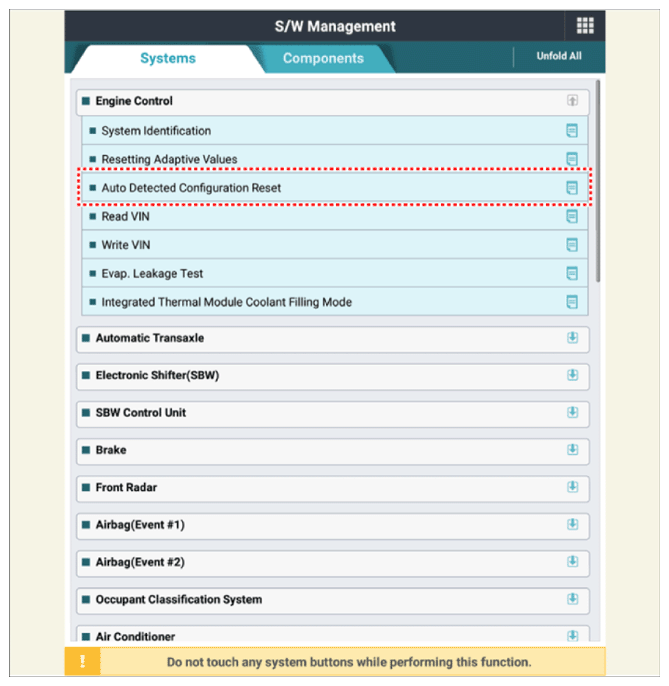

Perform the procedures below by using the KDS when replacing the ECM with a reused one.

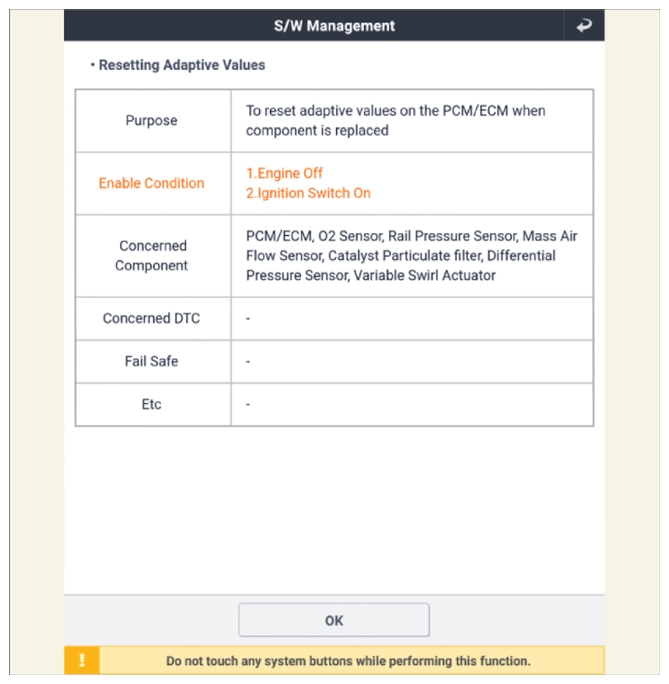

Perform the resetting adaptive values.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

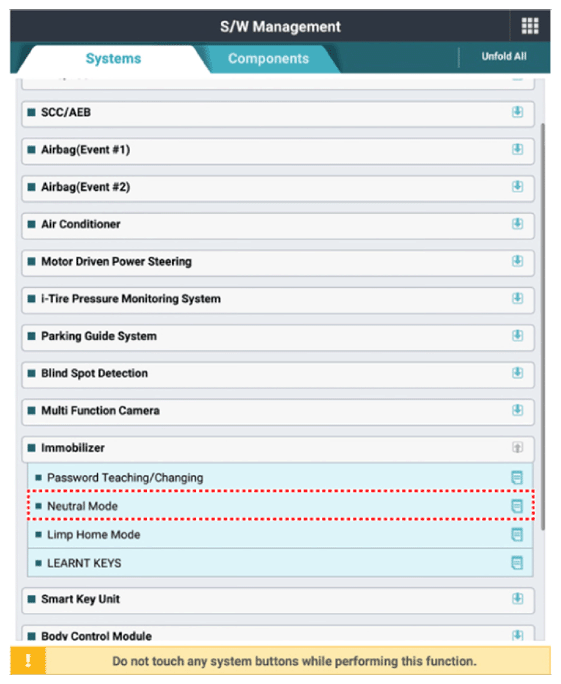

Perform the immobilizer neutral mode/smart key neutralization mode.

[Non-Smart Key]

Courtesy of KIA MOTORS AMERICA, INC.

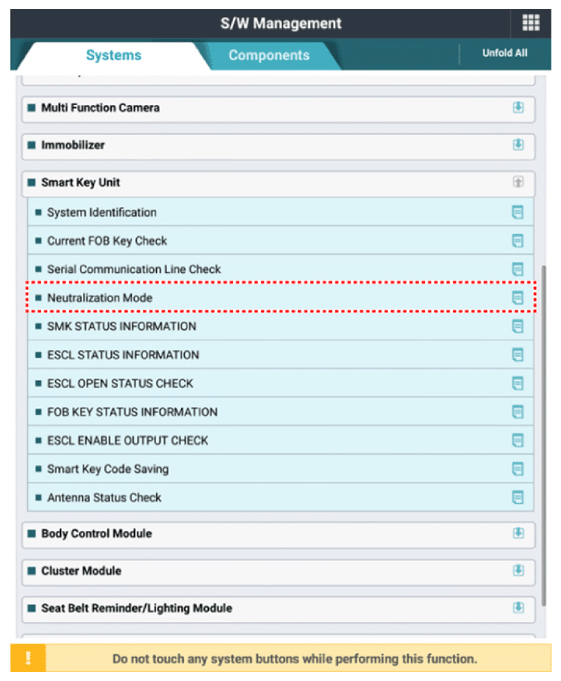

[Smart Key]

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

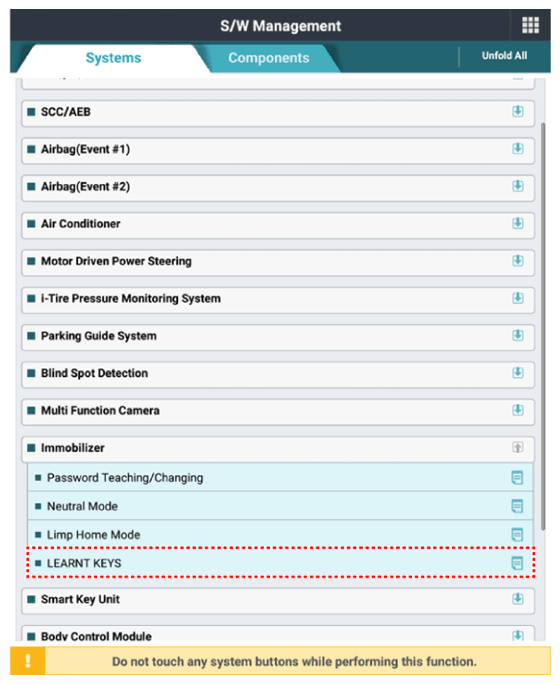

Perform the "Key Teaching" procedure by using the KDS.
[Non-Smart Key]

Courtesy of KIA MOTORS AMERICA, INC.

[Smart Key]

Turn IGN ON then OFF using the smart key or start button. Then the ECM learns information on the smart key automatically.

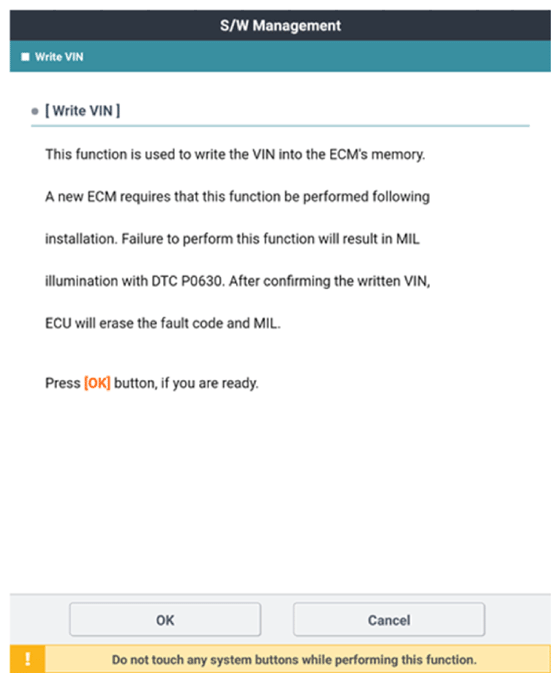

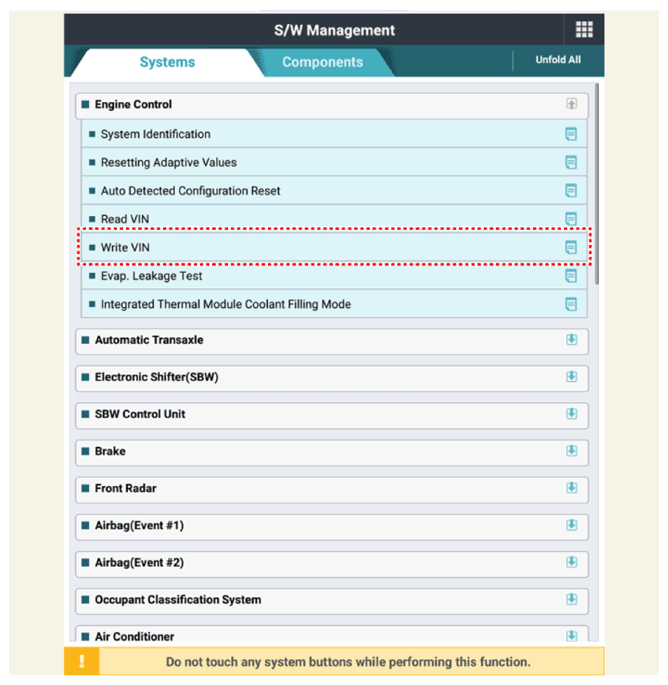

Perform the VIN writing procedure by using the KDS.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
Perform the Electronic Throttle Control (ETC) module learning procedure.
(Refer to Electronic Throttle Control (ETC) Module - "ADJUSTMENT ")
