Removal & Installation: Removal

Remove the air cleaner.
(Refer to Engine Mechanical System - "AIR CLEANER ")

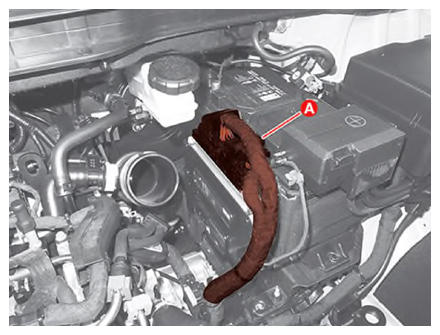

Disconnect the Engine Control Module (ECM) connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

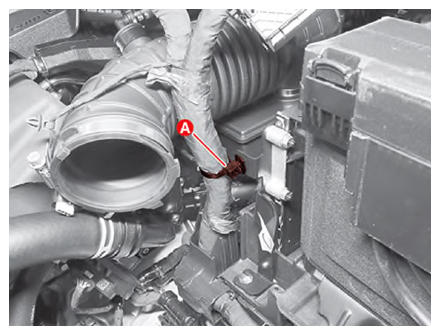

Separate the wiring fixing clip (A) from the ECM bracket.

Courtesy of KIA MOTORS AMERICA, INC.

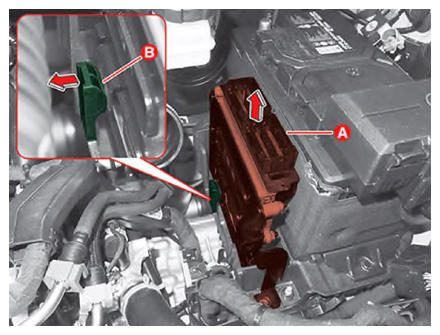

Remove ECM (A) to upward after releasing the fixed hook (B) by pulling in the direction of the arrow.

Courtesy of KIA MOTORS AMERICA, INC.

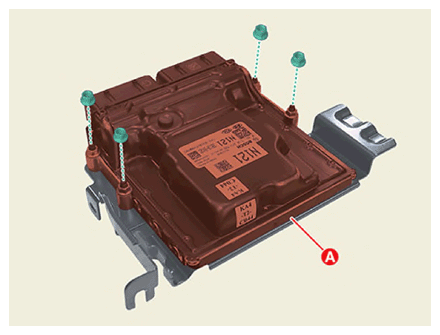

Remove the ECM (A) from the bracket after removing the mounting nuts.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
