Connector Connection Condition Test

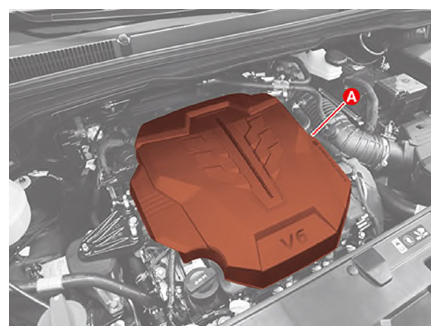

Remove the engine cover (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the surge tank.
(Refer to Engine Mechanical System - "SURGE TANK ")
Connect the ignition coil connector (A) again after disconnecting the ignition coil connector (A).

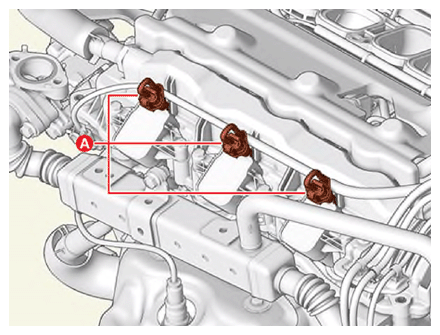

[Bank 1]

Courtesy of KIA MOTORS AMERICA, INC.

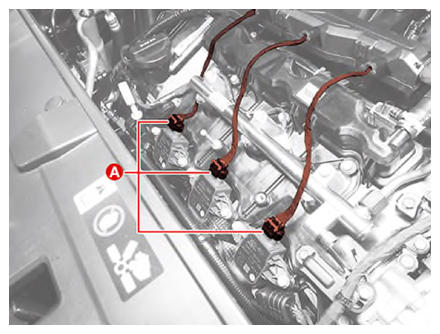

[Bank 2]

Courtesy of KIA MOTORS AMERICA, INC.
Install the surge tank.
(Refer to Engine Mechanical System - "SURGE TANK ")
Install the engine cover (A).

Courtesy of KIA MOTORS AMERICA, INC.
Perform the driving test after deleting the DTC code.

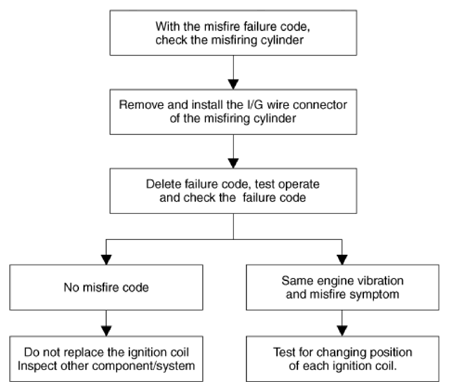

G14797031
