Removal And Installation

Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
Disconnect the CVVT oil control valve connector.
Remove the valves (A) by loosening the mounting bolt.
CVVT oil control valve mounting bolt:

9.8 - 11.8 Nm (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

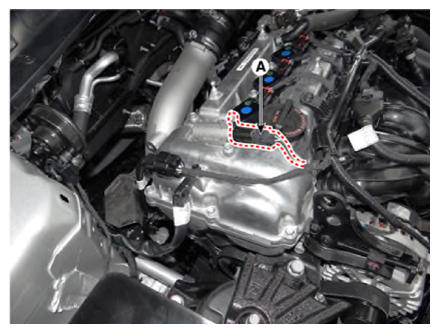

[Bank 1/Intake]

Courtesy of KIA MOTORS AMERICA, INC.

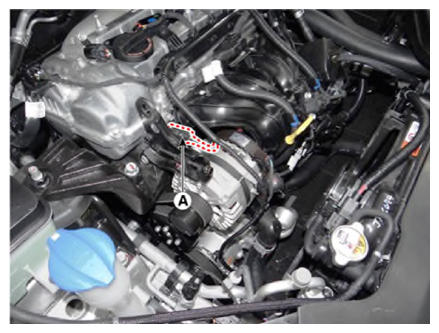

[Bank 1/Exhaust]

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.

NOTE:

Install the Oil Control Valve (OCV) with the specified torques.
If the OCV is dropped, it may cause internal damage. (Do not reuse)
Apply engine oil to the valve O-ring.
