Component Location

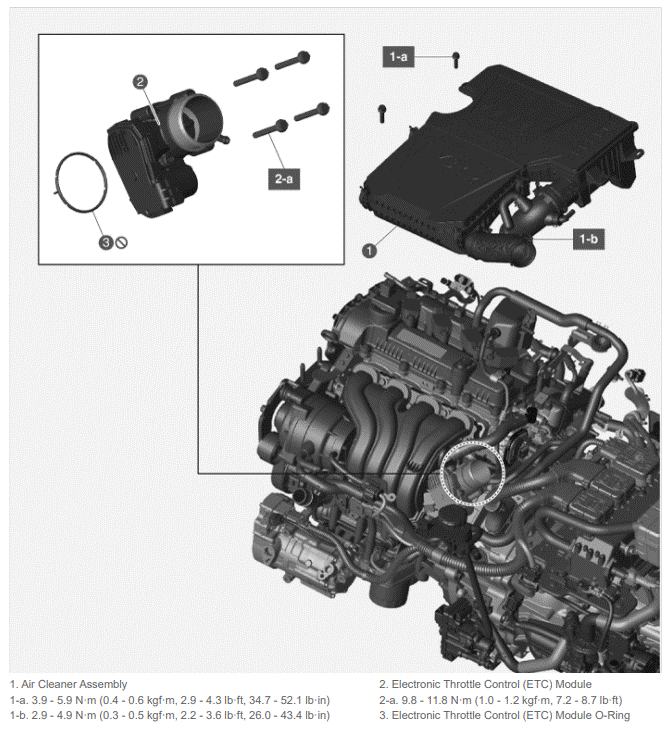

Fig 1: Electronic Throttle Control Module Components Location With Torque Specification
G15767097Courtesy of KIA MOTORS AMERICA, INC.
