Removal And Installation: Installation
WARNING:
- When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
- When working on the high voltage system or related components, be sure to observe and be aware of the "HIGH VOLTAGE SYSTEM GENERAL SAFETY INFORMATION AND CAUTION ". If not, it may cause serious accidents due to electric shock or short circuit.
- When working on the high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
- Install in the reverse order of removal.NOTE:
- Install the Electronic Throttle Control (ETC) to the specified torque.
- If the ETC module is dropped, it may cause internal damage. (Do not reuse)

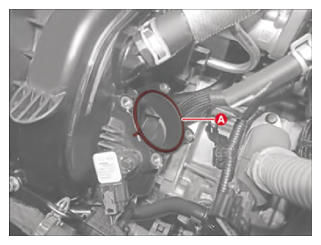

- Replace with a new gasket (A) and check to verify that the gasket seats properly before Installation.
- Perform the order below with the KDS.
(S/W Management → Engine Control → Resetting Adaptive Values)
Information
Refer to the KDS screen for operating conditions and details
- Perform the Electronic Throttle Control (ETC) module learning procedure.
(Refer to Electronic Throttle Control (ETC) Module - "ADJUSTMENT ")
