Engine Control Module (ECM): Adjustment

Information

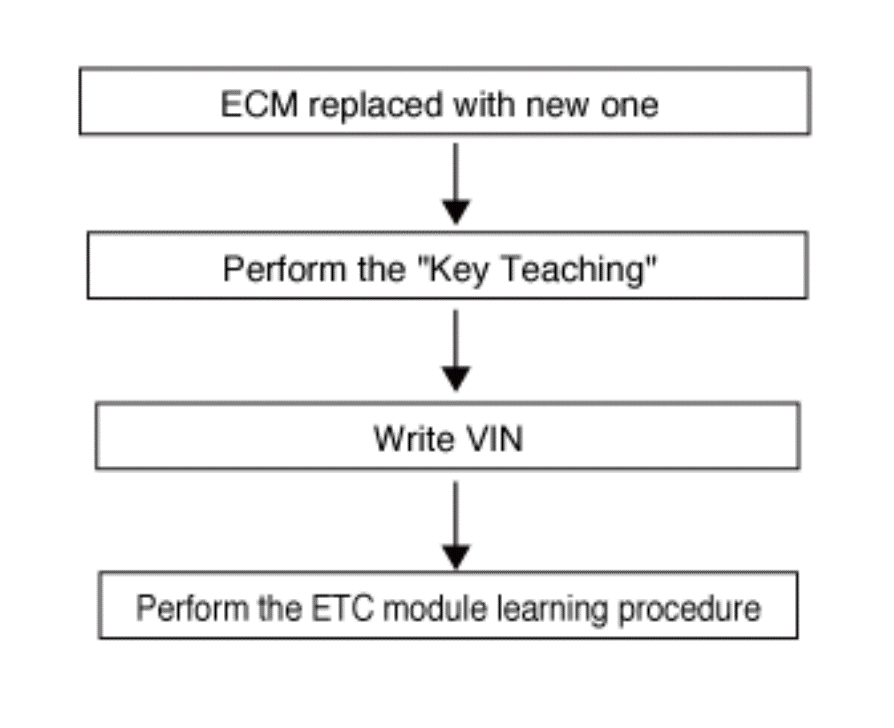

Perform inspecting procedure by using the KDS as below order.

Courtesy of KIA MOTORS AMERICA, INC.

1. Perform the "Key Teaching" procedure by using the KDS.

   Turn IG ON then OFF using the smart key or start button. Then the ECM learns information on the smart key automatically.

2. Perform the VIN writing procedure by using the KDS.

   (S/W Management → Engine Control → Write VIN)

   Information

   Refer to the KDS screen for operating conditions and details

3. Perform the Electronic Throttle Control (ETC) module learning procedure.

   (Refer to Engine Control System - "ELECTRONIC THROTTLE CONTROL (ETC) MODULE ")
