Removal and Installation: Removal
WARNING:
- When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
- When working on the high voltage system or related components, be sure to observe and be aware of the "HIGH VOLTAGE SYSTEM GENERAL SAFETY INFORMATION AND CAUTION ". If not, it may cause serious accidents due to electric shock or short circuit.
- When working on the high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
- Remove the DCT Control Module (TCM).
(Refer to DCT (Dual Clutch Transmission) System - "DCT CONTROL MODULE (TCM) ")

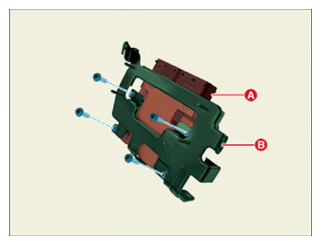

- Remove the Engine Control Module (ECM) (A) after removing the bolts from the bracket (B).
Tightening torque:
6.9 - 8.3 N.m (0.7 - 0.85 kgf.m, 5.1 - 6.1 lb.ft, 60.8 - 73.8 lb.in)
