Removal And Installation: Removal

  1. Remove the crash pad garnish [Passenger's side].

    (Refer to Body - " CRASH PAD GARNISH  ")

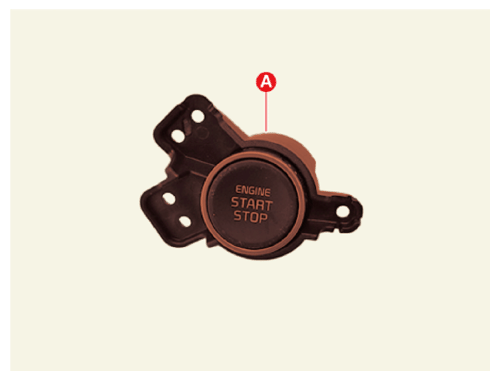

  2. Remove the Start/Stop Button (SSB) (A) after removing the screws.
    G16425840Courtesy of KIA MOTORS AMERICA, INC.
    G16425841Courtesy of KIA MOTORS AMERICA, INC.
