Component Inspection

  1. Check the engine oil temperature with the KDS.
  2. Remove the engine room under cover.

    (Refer to Engine Mechanical System - " ENGINE ROOM UNDER COVER  ")

  3. Disconnect the Oil Pressure & Temperature Sensor (OPTS) connector (A).

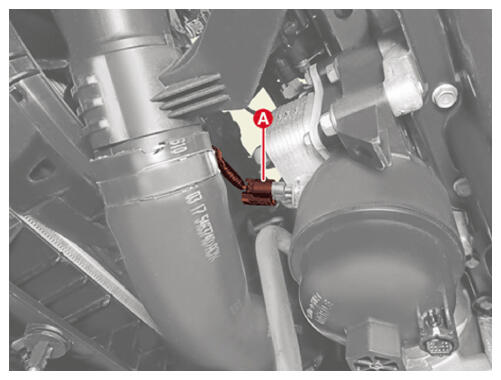

    G16423662Courtesy of KIA MOTORS AMERICA, INC.
  4. Measure resistance between the OPTS terminals.

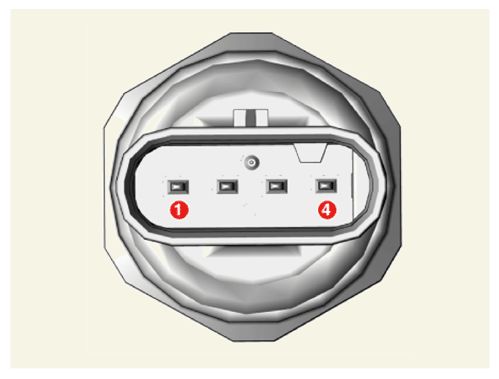

    G16423663Courtesy of KIA MOTORS AMERICA, INC.
    Terminal Function
    1 Sensor ground
    4 Sensor
  5. Check that the resistance is within the specification.
    Temperature Resistance (KΩ)
    °C °F
    -40 -40 125.53 - 136.70
    -30 -22 93.26 - 104.65
    -20 -4 63.89 - 71.23
    -10 14 41.80 - 46.52
    0 32 26.83 - 30.07
    10 50 17.13 - 19.23
    20 68 11.13 - 12.48
    25 77 9.00 - 10.11
    30 86 7.369 - 8.279
    40 102 4.89 - 5.50
    50 122 3.34 - 3.76
    60 140 2.32 - 2.61
    70 158 1.63 - 1.84
    80 176 1.17 - 1.32
    90 194 0.86 - 0.97
    100 212 0.64 - 0.72
    110 230 0.48 - 0.54
    120 248 0.37 - 0.41
    130 266 0.28 - 0.32
    140 284 0.22 - 0.25
    150 302 0.17 - 0.20
    160 320 0.14 - 0.16
