Component Inspection

  1. Disconnect the battery negative (-) terminal.

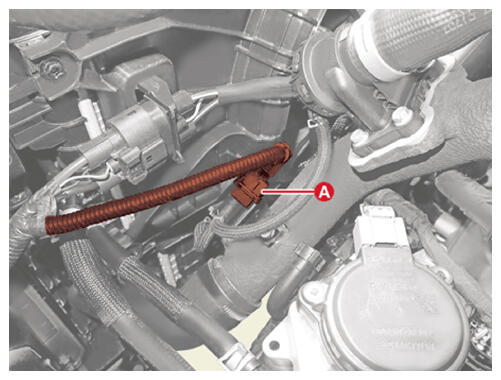

  2. Disconnect the RCV control solenoid valve connector (A).
    G16423668Courtesy of KIA MOTORS AMERICA, INC.
  3. Measure resistance between the terminals.

    Specified value:  28.3 - 31.1 Ω
