Connector Connection Condition Test

  1. Disconnect the battery negative (-) terminal.

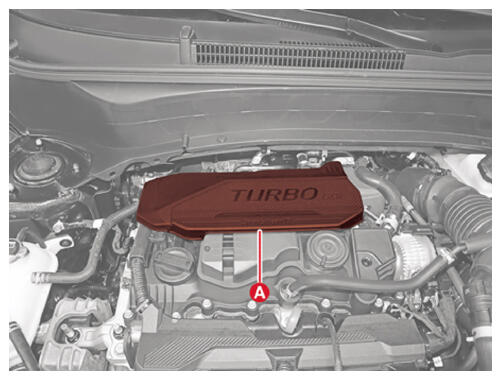

  2. Remove the engine cover
    G16423430Courtesy of KIA MOTORS AMERICA, INC.

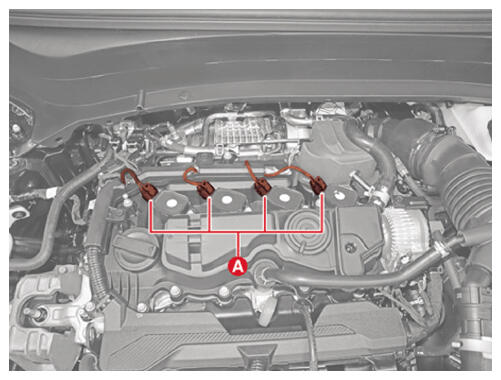

  3. Re-connect the ignition coil connectors (A) after disconnecting the ignition coil connectors.
    G16423431Courtesy of KIA MOTORS AMERICA, INC.

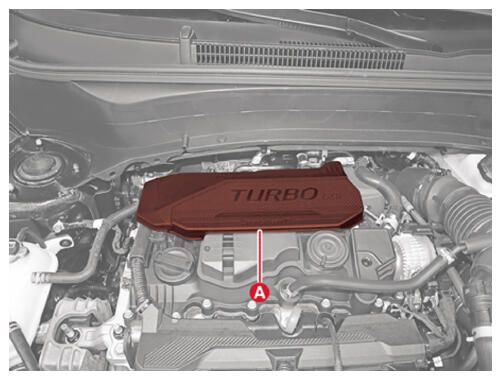

  4. Install the engine cover (A).
    G16423432Courtesy of KIA MOTORS AMERICA, INC.
  5. Connect the battery negative (-) terminal.

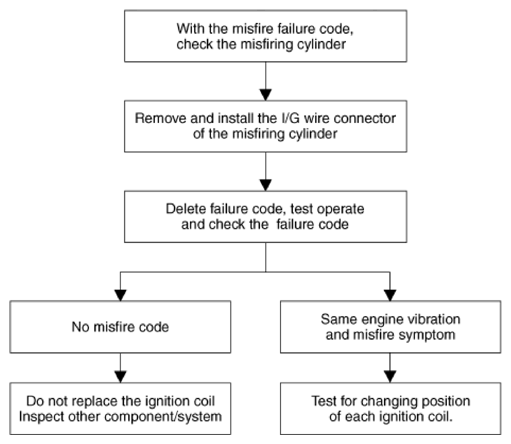

  6. Perform the driving test after deleting the DTC code.
G16423433Courtesy of KIA MOTORS AMERICA, INC.
