Removal & Installation: Removal

Remove the ignition coil.
(Refer to Ignition System - "IGNITION COIL ")

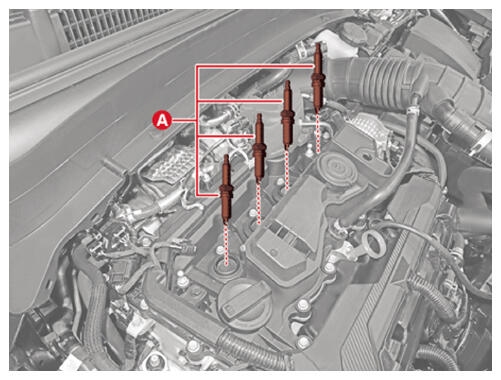

Remove the spark plugs (A) by using a spark plug socket.
Tightening torque:

14.7 - 24.5 N.m (1.5 - 2.5 kgf.m, 10.8 - 18.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Be careful not to get foreign matter into the spark plug hole.
