Wheel Alignment: Alignment: Adjustment: Front: Caster

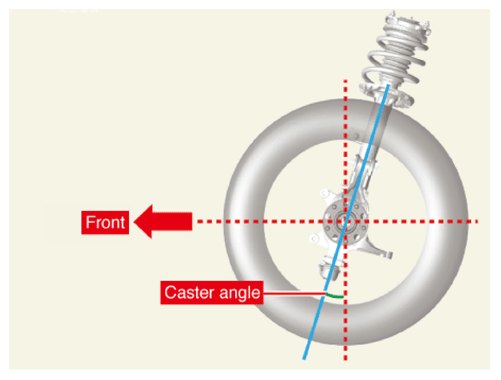

The caster cannot be adjusted. If the measured caster exceeds the standard limit, repair or replace the relevant parts and inspect the wheel alignment again.
| Tire Size | Drive Type | Specification |
|---|---|---|
| 205/60 R16 | 2WD | 4.33 ± 0.5 |
| 4WD | 4.28 ± 0.5 | |
| 215/55 R17 | 2WD | 4.34 ± 0.5 |
| 4WD | 4.29 ± 0.5 | |
| 235/45 R18 | 2WD | 4.37 ± 0.5 |
| 4WD | 4.31 ± 0.5 |
Information
- Before measuring the front wheel alignment, wear, loose and damaged parts of the front suspension assembly should be replaced.
- Camber and caster are assembled at the specified value during production and need not be adjusted.
- If the camber and caster are not within the specified limits, replace the bent or damaged parts.
- The difference between the left and right wheels of Camber and Caster shall be within 0° ± 0.5°.
