Components And Components Location: Removal

Place the shift lever in the 'N' position.
NOTE: Use wheel chocks to prevent vehicle moved accidentally.
Remove the air cleaner assembly.
(Refer to Engine Mechanical System - " AIR CLEANER REMOVAL & INSTALLATION ")
Remove the battery and battery tray.
(Refer to Engine Electrical System - " BATTERY REMOVAL & INSTALLATION ")

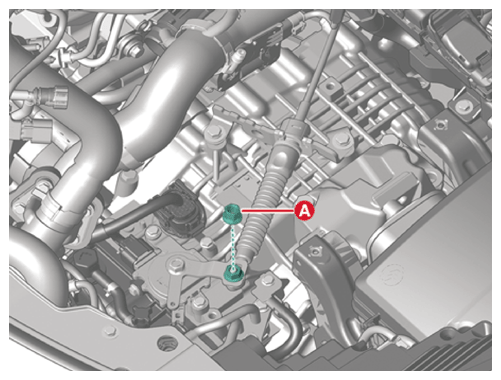

Remove the shift cable by removing the nut (A).

Courtesy of KIA MOTORS AMERICA, INC.

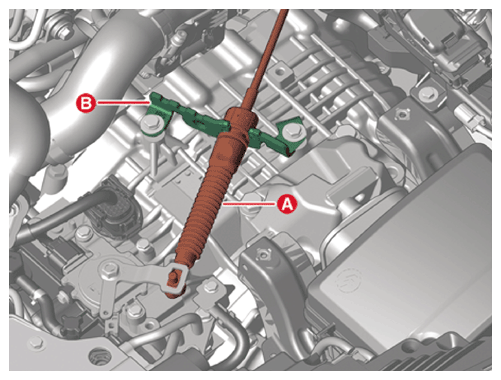

Remove the shift cable (A) from the bracket (B).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the console upper cover.
(Refer to Body - " CONSOLE UPPER COVER ")

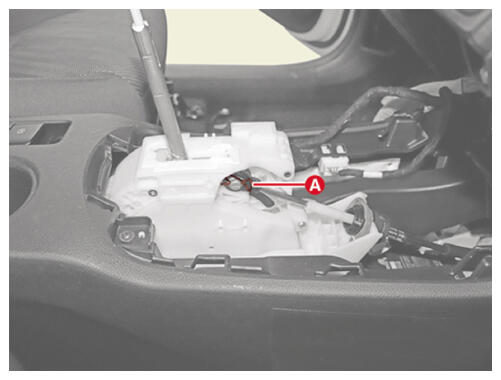

Remove the snap pin (A).

Courtesy of KIA MOTORS AMERICA, INC.

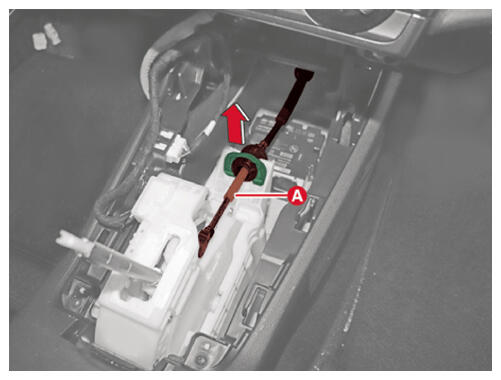

Remove the shift cable (A) from the shift lever.

Courtesy of KIA MOTORS AMERICA, INC.

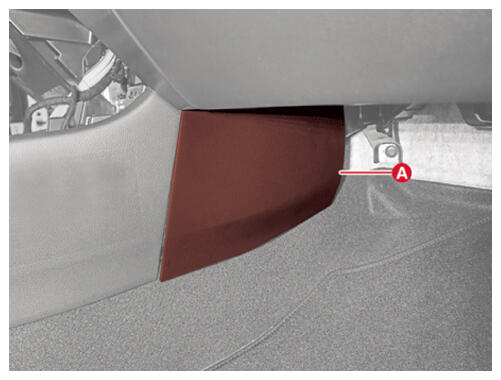

Remove the floor console side cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

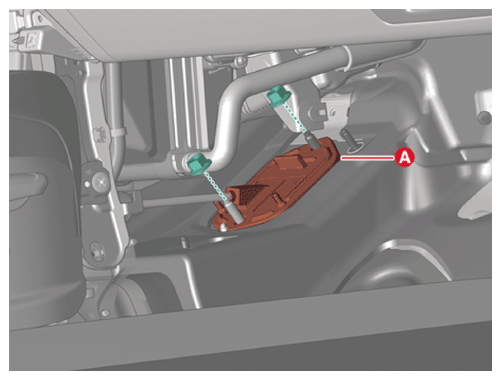

Courtesy of KIA MOTORS AMERICA, INC.

Information

IMPORTANT:

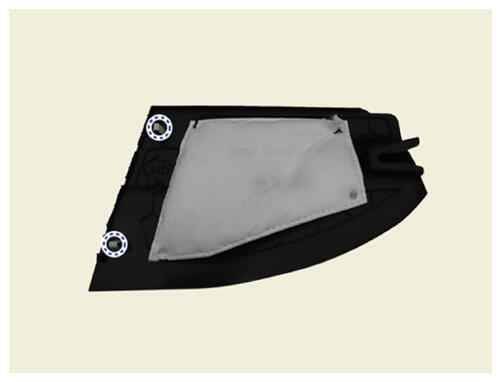

Clip position:
Remove the shift cable retainer (A) after removing the nuts. Then, remove the shift cable by pulling it toward the vehicle interior.

Courtesy of KIA MOTORS AMERICA, INC.
