Oil Temperature Sensor (E Module): Installation
- Install in reverse order of removal.NOTE:

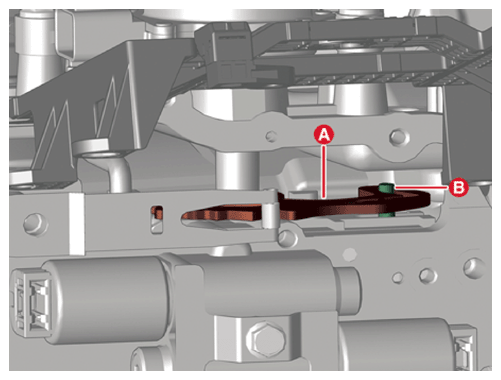

- When installing the valve body, make sure that the pin (B) of the manual valve is inserted into the detent lever (A).

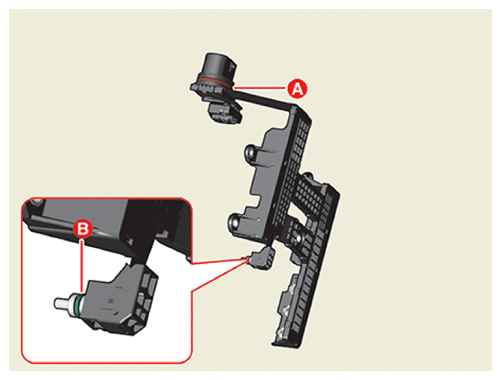

- Lubricate the main connector O-ring (A) and oil temperature sensor O-ring (B) before installing the E module.

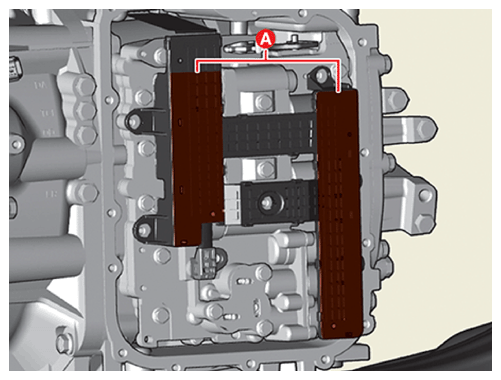

- When installing, after mounting the E module, lightly tap the connector part (A) to insert the connector certainly and then tighten the bolts.

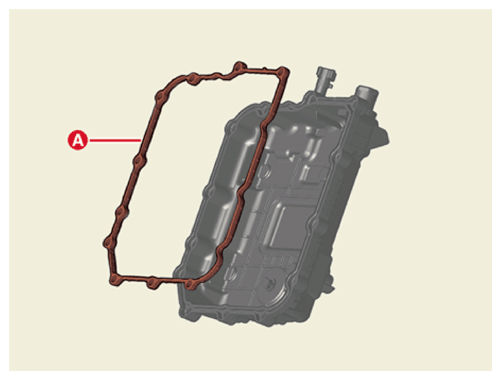

- The existing valve body cover gasket (A) must be replaced with a new one (do not reuse).

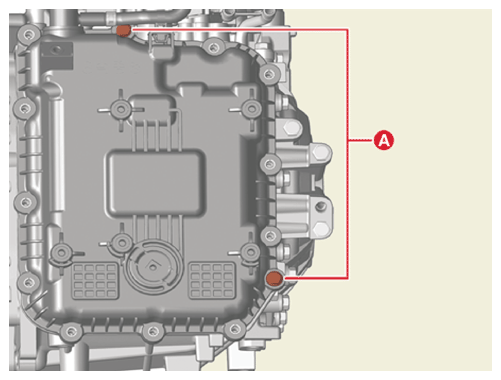

- When installing the valve body cover, tighten the remaining bolt after pre-tightening the bolt (A).
- When installing the clamp, be careful not to damage the hose.
- When installing the valve body, make sure that the pin (B) of the manual valve is inserted into the detent lever (A).
- Replenish the automatic transaxle fluid.
(Refer to " HYDRAULIC SYSTEM - FLUID ")
- Check for leakage of coolant or fluid from hose connection while the engine is starting and running.
