Components And Components Location: Component

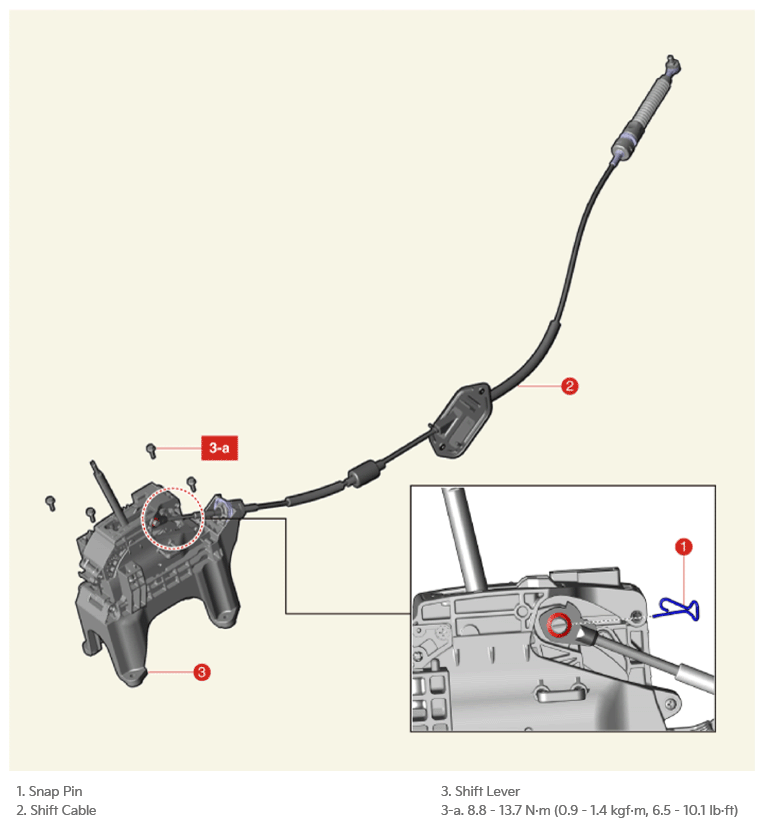

Fig 1: Shift Lever Components Location With Torque Specifications
G16424172Courtesy of KIA MOTORS AMERICA, INC.
