Repair Procedures: Removal

Place the shift lever in the 'N' position.
NOTE: Use the wheel chocks to prevent vehicle moved accidentally.
Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
Remove the battery and battery tray.
(Refer to Body Electrical System - "BATTERY ")

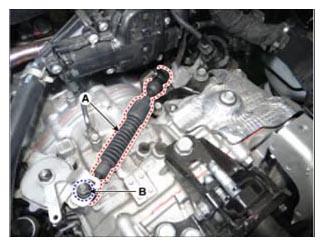

Remove the shift cable (A) from the bracket after removing the nut (B).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the floor console assembly.
(Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

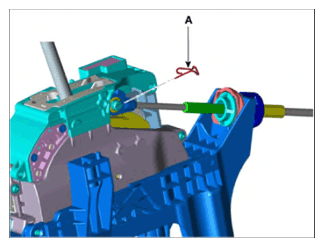

Remove the shift cable from the shift lever pin after removing the snap pin (A).

Courtesy of KIA MOTORS AMERICA, INC.

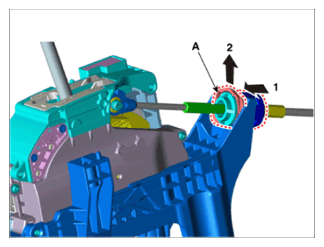

Remove the cable socket (A) from the shift lever.

Courtesy of KIA MOTORS AMERICA, INC.

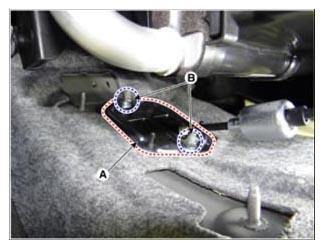

Remove the shift cable retainer (A) after loosening the nuts (B).
Then, remove the shift cable by pulling it toward the vehicle interior.
