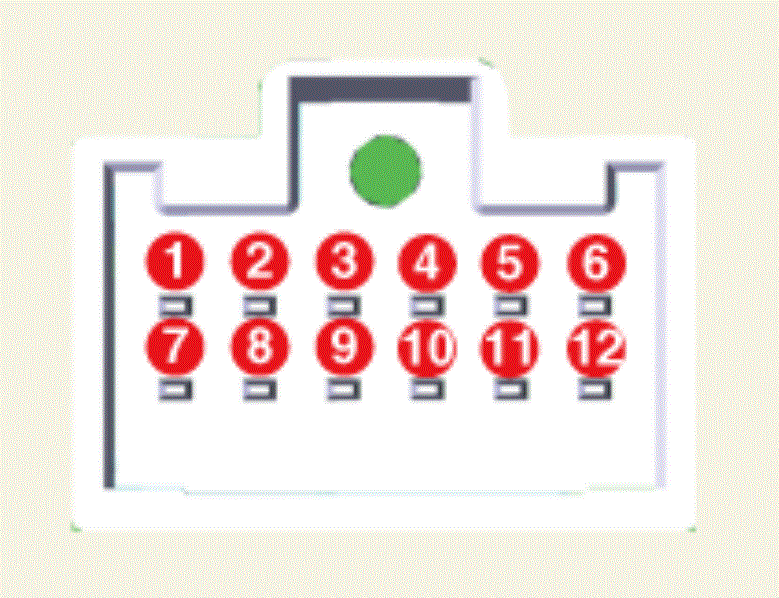

Connector And Terminal Function

Courtesy of KIA MOTORS AMERICA, INC.
Pin	Function
1	SSB Switch 1
2	-
3	-
4	-
5	SSB ILL.
6	Immobilizer (Power)
7	Ground
8	SSB Switch 2
9	-
10	SSB Ring ILL.
11	Illumination (-)
12	Immobilizer (Ground)
