Removal & Installation: Installation

  1. Install in reverse order of removal.
NOTE:
  • Install the Camshaft Position Sensor (CMPS) to the specified torque.
  • If the CMPS is dropped, it may cause internal damage. (Do not reuse)

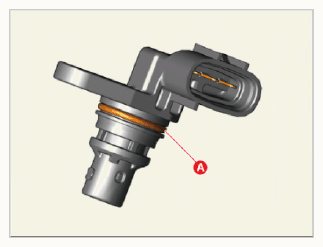

  • Apply the engine oil to the O-ring (A).
G15693280Courtesy of KIA MOTORS AMERICA, INC.
