Components Location

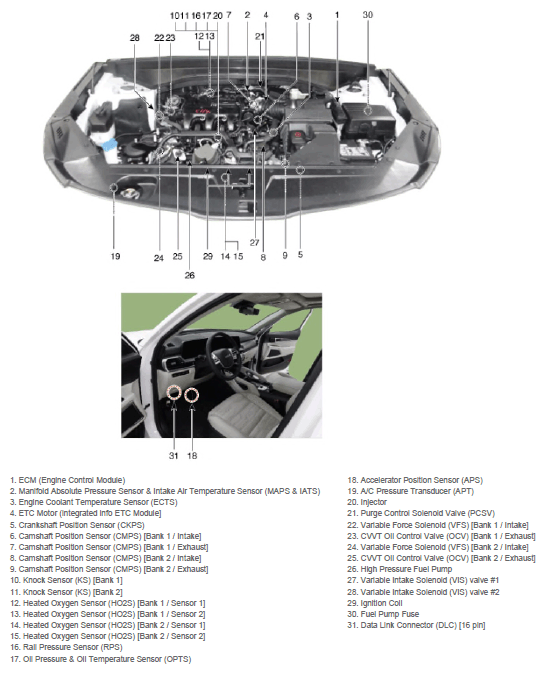

G15693262Courtesy of KIA MOTORS AMERICA, INC.

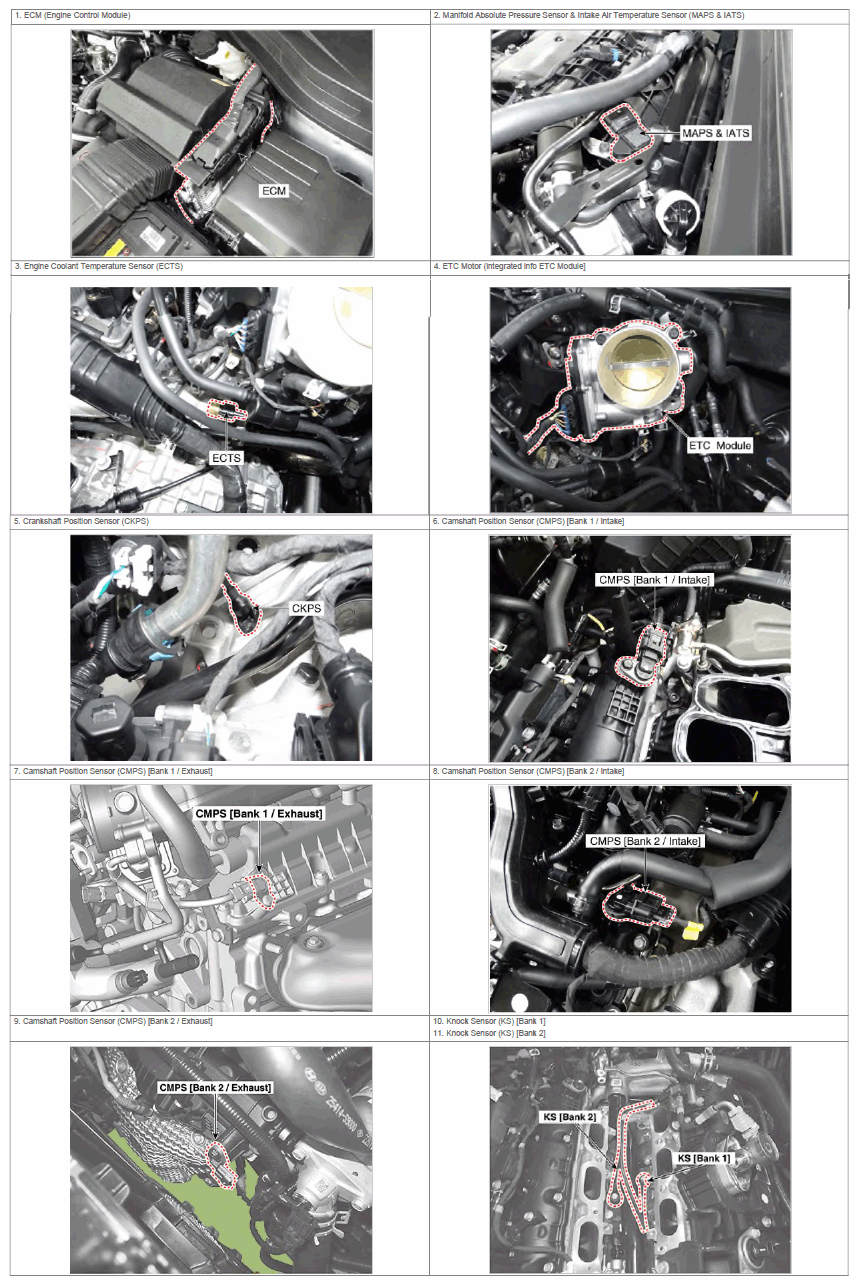

G15693263Courtesy of KIA MOTORS AMERICA, INC.

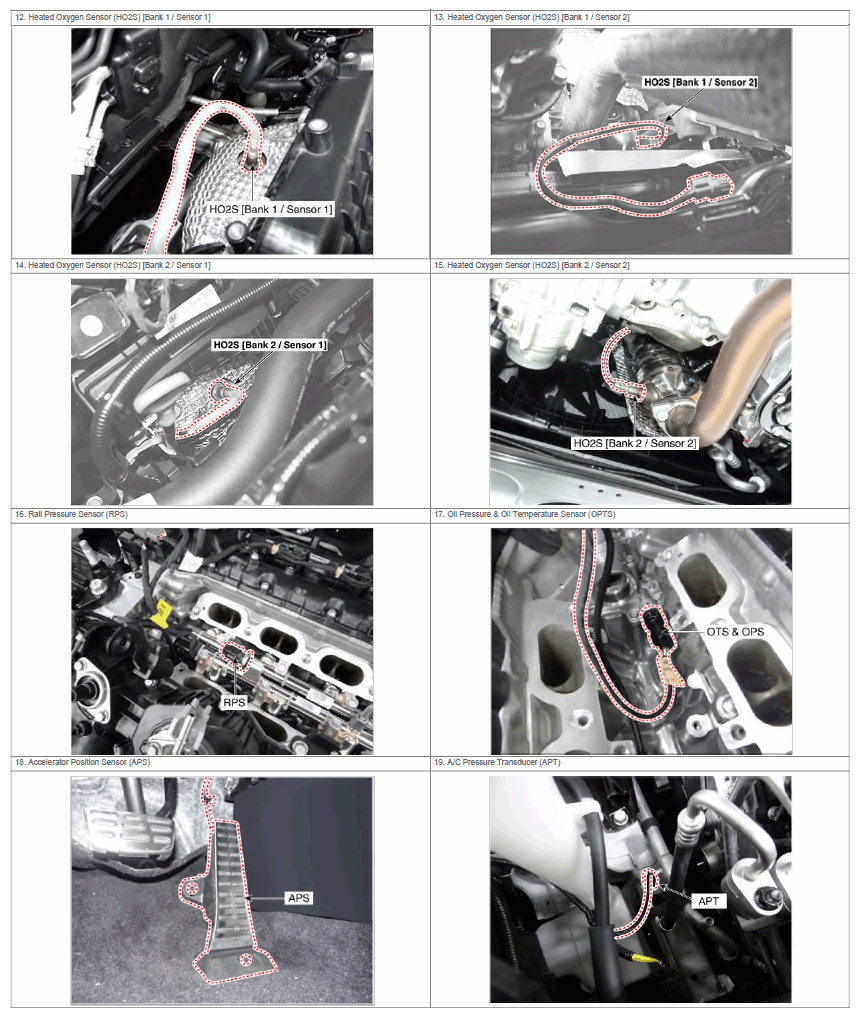

G15693264Courtesy of KIA MOTORS AMERICA, INC.

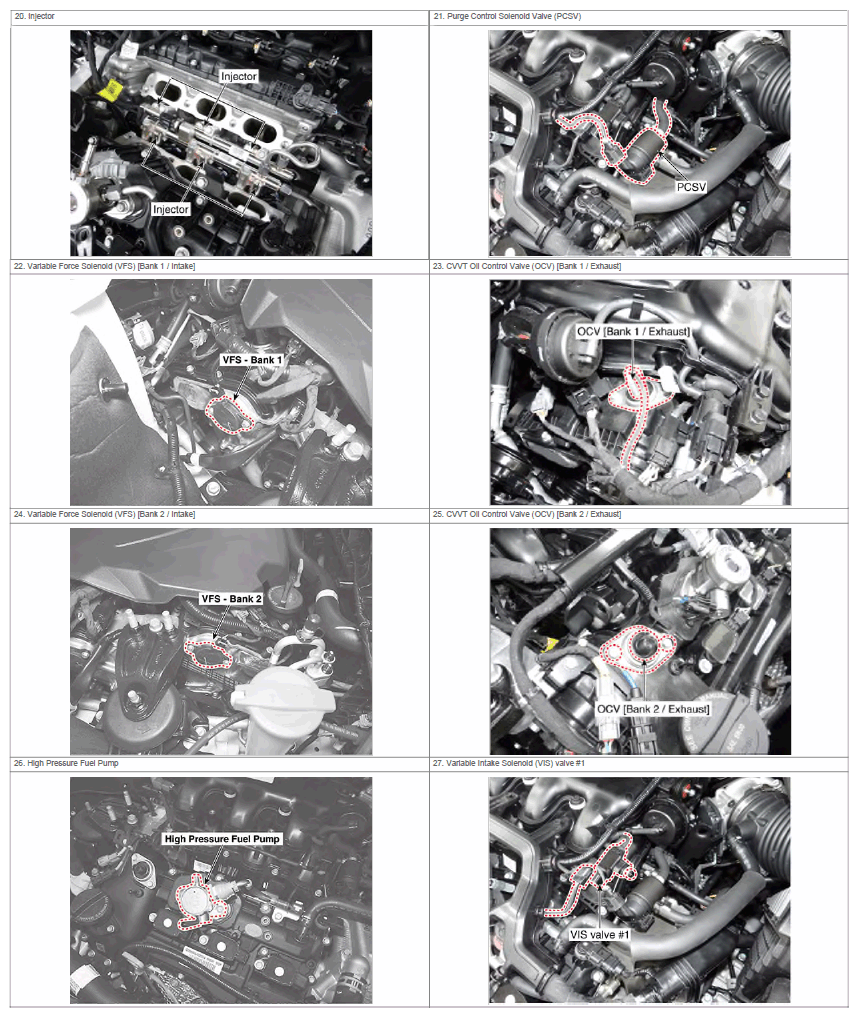

G15693265Courtesy of KIA MOTORS AMERICA, INC.

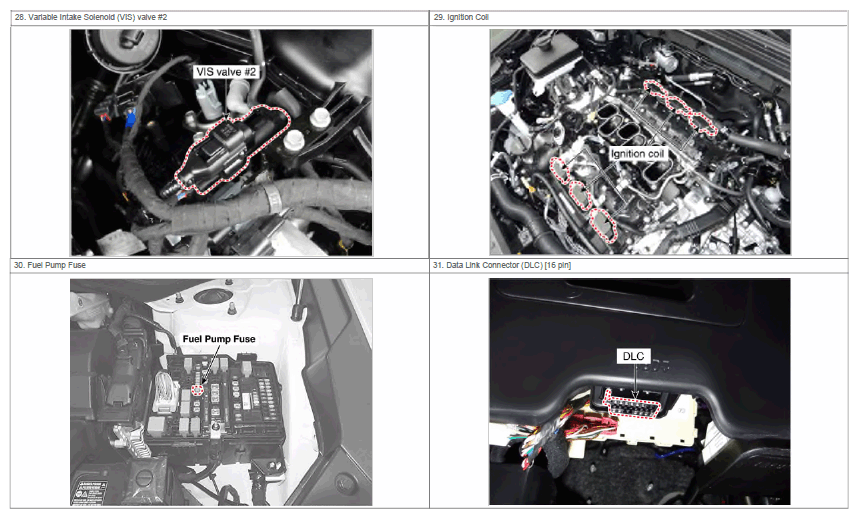

G15693266Courtesy of KIA MOTORS AMERICA, INC.
