Removal & Installation: Installation

  1. Install in reverse order of removal.
    NOTE:
    • Install the Crankshaft Position Sensor (CKPS) to the specified torque.
    • If the CKPS is dropped, it may cause internal damage. (Do not reuse)

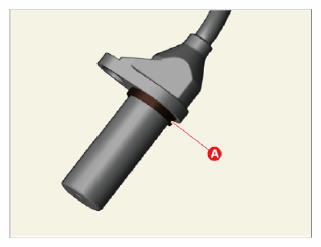

    • Apply the engine oil to the O-ring (A).
G15693285Courtesy of KIA MOTORS AMERICA, INC.
