Removal & Installation: Removal

Disconnect the battery negative (-) terminal.
Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")

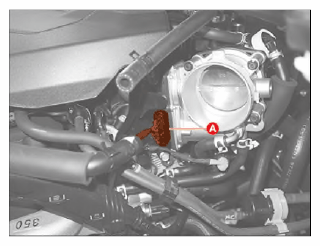

Disconnect the Electronic Throttle Control (ETC) module connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

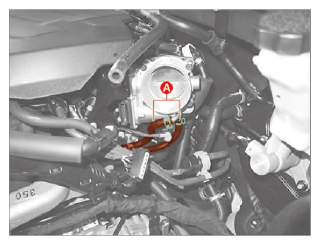

Separate the hoses (A) by releasing the clamp.

Courtesy of KIA MOTORS AMERICA, INC.

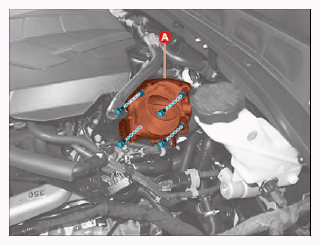

Remove the ETC module (A) after removing the bolts.
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
