Component Inspection
- Check the coolant temperature with the KDS.

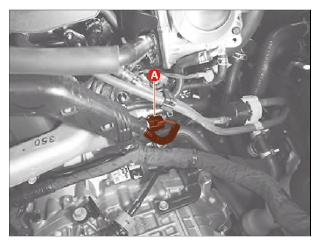

- Disconnect the Engine Coolant Temperature Sensor (ECTS) connector (A).
- Measure resistance after disconnecting the ECTS connector.
Temperature Resistance (KΩ) °C °F -40 -40 48.14 -20 -4 14.13 - 16.83 0 32 5.79 20 68 2.31 - 2.59 40 104 1.148 60 140 0.5865 80 176 0.3222 100 212 0.1884 110 230 0.1451 - 0.1473 120 248 0.1163
