Removal & Installation: Removal
- Disconnect the battery negative (-) terminal.
- Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")

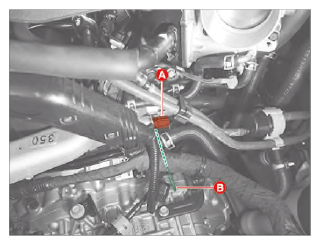

- Disconnect the Engine Coolant Temperature Sensor (ECTS) connector (A).

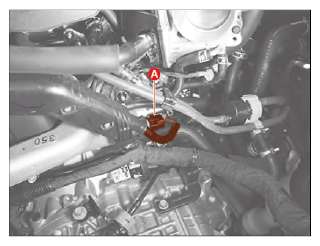

- Remove the ECTS (A) after removing the clip (B).
NOTE:
Note that engine coolant may flow out when removing the sensor.
