Component Inspection

  1. Disconnect the Variable Force Solenoid (VFS) connector (A).

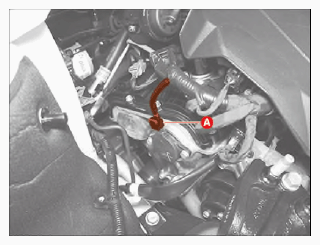

    Bank 1

    G15693345Courtesy of KIA MOTORS AMERICA, INC.

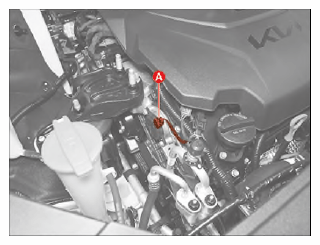

    Bank 2

    G15693346Courtesy of KIA MOTORS AMERICA, INC.
  2. Measure resistance between the terminals.
  3. Check that the resistance is within the specification.
Item Specification
Resistance (Ω) 7.0 - 8.0 [20°C (68°F)]
