Removal & Installation: Installation

Install in reverse order of removal.
NOTE:
- Install the Variable Force Solenoid (VFS) to the specified torque.
- If the VFS is dropped, it may cause internal damage. (Do not reuse)

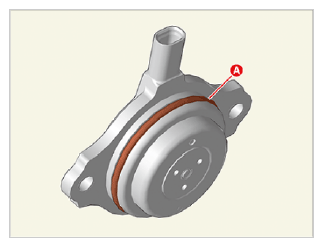

- When installing the VFS, apply the engine oil to the O-ring (A).

Courtesy of KIA MOTORS AMERICA, INC.
