Removal & Installation: Installation

Install in the reverse order of removal.
NOTE:
- Install the spark plug to the specified torque.
- If the spark plug is dropped, it may cause internal damage. (Do not reuse)
- Be careful not to damage the electrode when installing the spark plug.

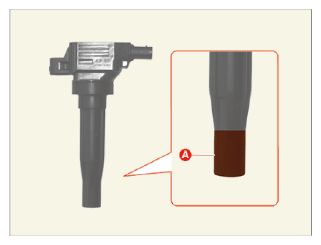

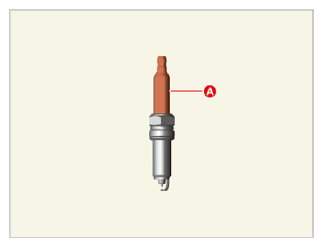

- When installing the parts, use cloth to clean the contaminated area (A).
  - Use a clean and soft cloth to avoid damage.
    (When replacing ignition coil and spark plug together, cleaning is not required.)
