Spark Plug: Troubleshooting

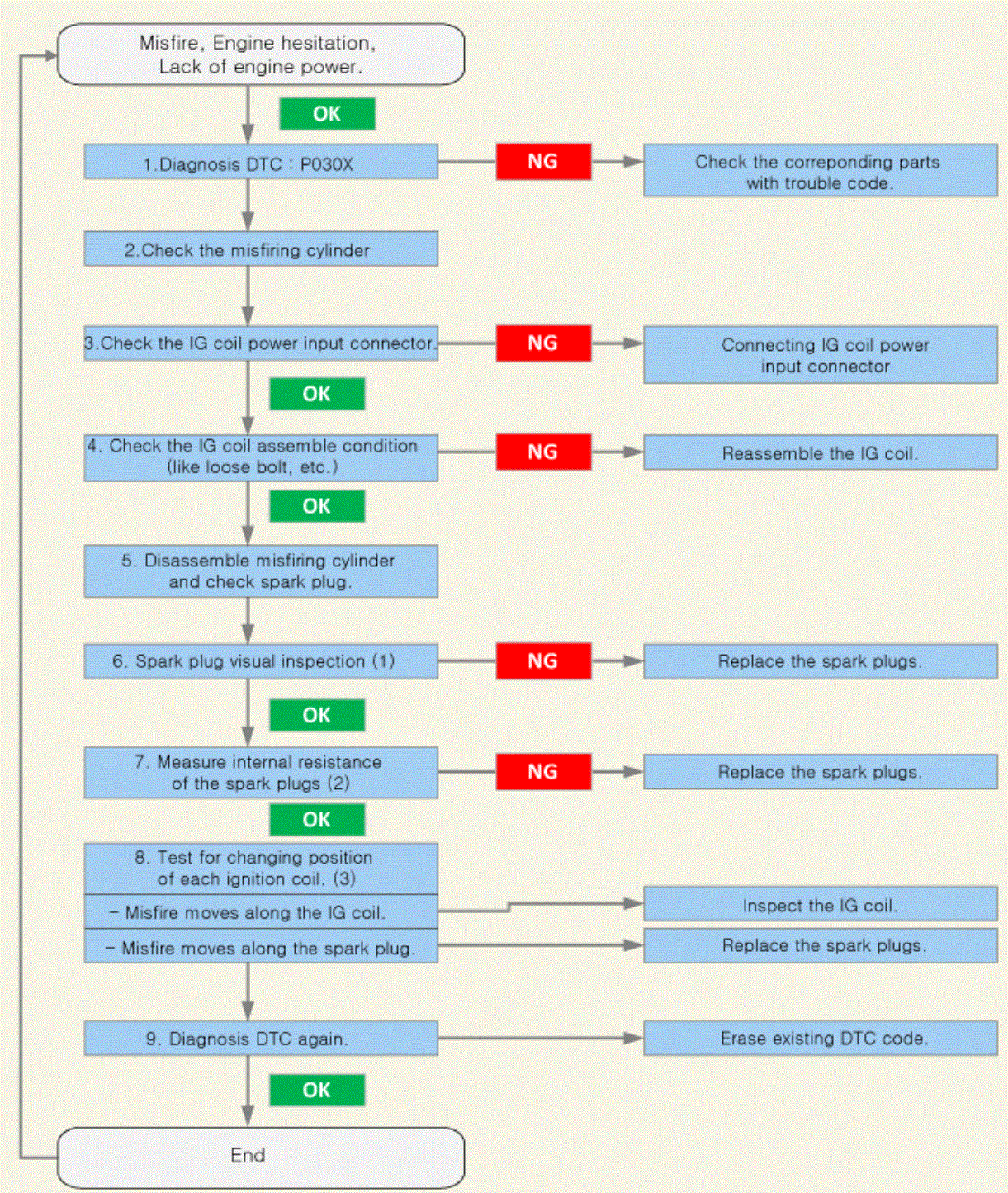

Check the DTC code with the KDS (Refer to "DTC guide").

Courtesy of KIA MOTORS AMERICA, INC.

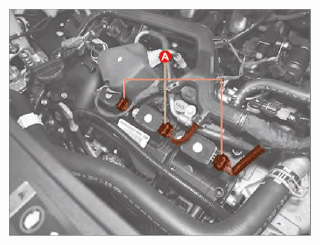

Check the connection condition of the ignition coil connector (A).
[Bank 1]

Courtesy of KIA MOTORS AMERICA, INC.

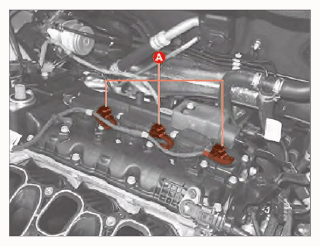

[Bank 2]

Courtesy of KIA MOTORS AMERICA, INC.
Check the installation condition of the ignition coil (A).
Tightening torque:

9.8 - 11.7 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

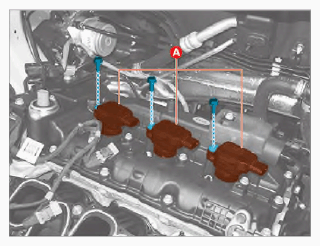

[Bank 1]

Courtesy of KIA MOTORS AMERICA, INC.

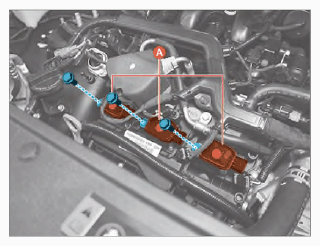

[Bank 2]

Courtesy of KIA MOTORS AMERICA, INC.
Remove the spark plug.
(Refer to Spark Plug - "REMOVAL AND INSTALLATION ")

Visual inspection of the spark plugs.

Spark plug gap [mm (in.)]: 1.0 - 1.1 (0.0394 - 0.0433.)

Symptom	Suspected Cause	Correction
Courtesy of KIA MOTORS AMERICA, INC. Melting electrode	Abnormal combustion, overheat	Replace the spark plugs
Courtesy of KIA MOTORS AMERICA, INC.	Carbon and foreign matter
Courtesy of KIA MOTORS AMERICA, INC. Ring crack	Abnormal combustion, external shock
Courtesy of KIA MOTORS AMERICA, INC. Vertical crack	External shock
Courtesy of KIA MOTORS AMERICA, INC. Overheat	Abnormal combustion

Symptom	Suspected Cause	Correction
Courtesy of KIA MOTORS AMERICA, INC. Poor gap	Physical damage	Replace the spark plugs
Courtesy of KIA MOTORS AMERICA, INC. Flash over	Excessive electrode wear	Replace the spark plugs, ignition coil
Courtesy of KIA MOTORS AMERICA, INC. Corrosion/Rust	Remaining oil mist	Reassemble the spark plugs

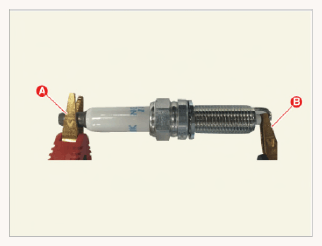

Check the resistance between the spark plugs terminal (A) and probe (B) by using a multi-tester or a resistance meter.
Specification: 2 - 20 KΩ (Room temperature)

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Avoid the contact resistance between probe and spark plugs (when it occurs, the measured value is not stabilized).

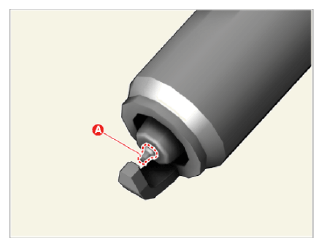

- Be careful not to damage center electrode (A) while measuring resistance.
Courtesy of KIA MOTORS AMERICA, INC.
Test for changing position of each ignition coil.
1. Remove the spark plug and ignition coil from the misfiring cylinder and exchange them with one of the other cylinders.
  (Refer to Spark Plug - "REMOVAL AND INSTALLATION ")
2. Replace the spark plugs, if misfire moves along the spark plugs.
