Special Service Tool: Notes

Tool Name/Number	Illustration	Description

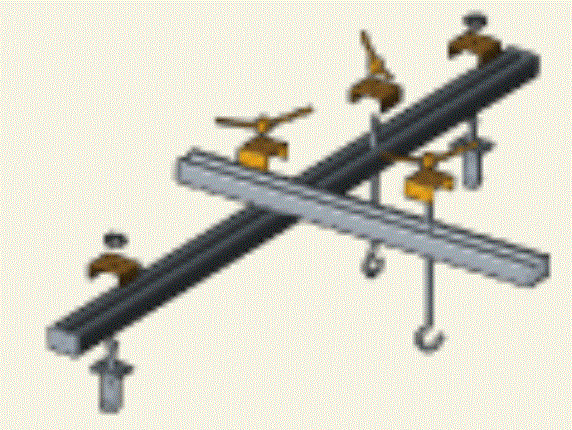

Engine support fixture (bar) 09200 - 3N000	Courtesy of KIA MOTORS AMERICA, INC.	Used for holding engine assembly when removing/installing automatic transaxle Refer to the engine support fixture assembly drawing below.

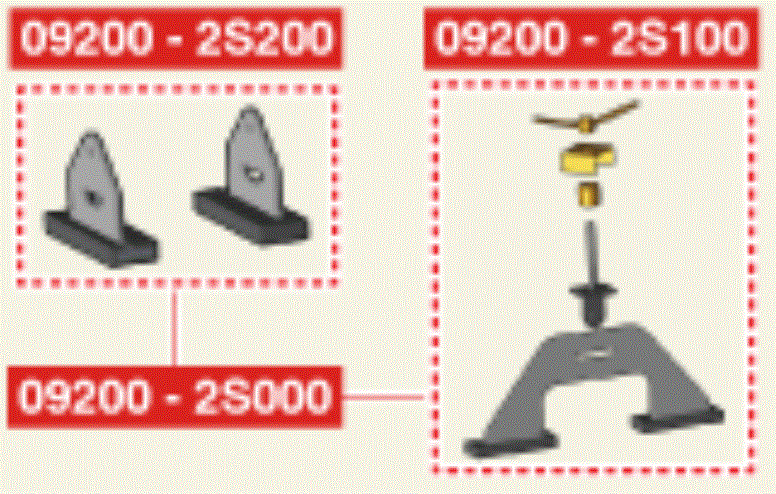

Engine support fixture (supporter) 09200 - 2S000 09200 - 2S100 09200 - 2S200	Courtesy of KIA MOTORS AMERICA, INC.	Used for holding engine assembly when removing/installing automatic transaxle Refer to the engine support fixture assembly drawing below.
Engine support fixture (adapter) 09200 - 4X000	Courtesy of KIA MOTORS AMERICA, INC.	Used for holding engine assembly when removing/installing automatic transaxle Refer to the engine support fixture assembly drawing below.
