Removal And Installation: Removal

Perform the order below with the KDS. (When replacing with a new TCM)
(S/W Management → Automatic Transaxle → Oil-pressure Characteristics Backup & Input)

Information

Refer to the KDS screen for operating conditions and details.
Disconnect the battery negative (-) terminal.
Remove the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

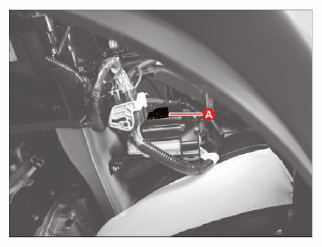

Disconnect the TCM connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

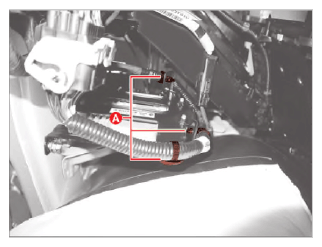

Remove the wiring fixing clips (A).

Courtesy of KIA MOTORS AMERICA, INC.

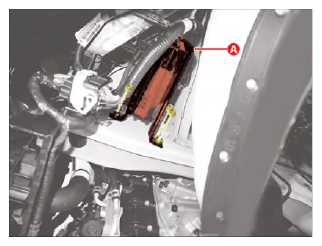

Remove the TCM (A) after removing the nuts.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
