Removal And Installation: Removal

  1. Disconnect the battery negative (-) terminal.

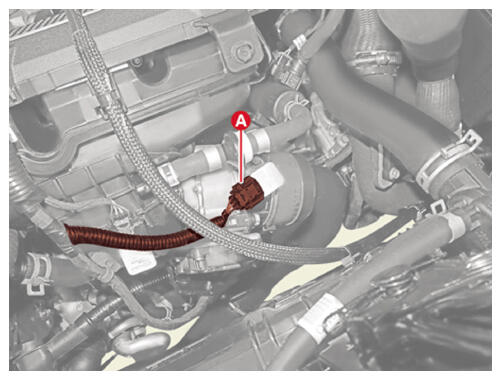

  2. Disconnect the Boost Pressure Sensor (BPS) connector (A).
    G16423570Courtesy of KIA MOTORS AMERICA, INC.

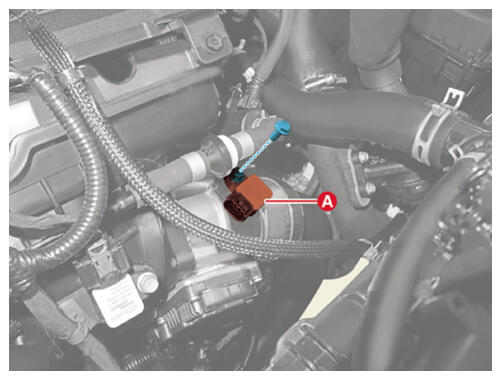

  3. Remove the BPS (A) after removing the bolt.

    Tightening torque:

    8.8 - 10.8 N.m (0.9 - 1.1 kgf.m, 6.5 - 8.0 lb.ft)

    G16423571Courtesy of KIA MOTORS AMERICA, INC.
