Removal And Installation: Installation

Install in reverse order of removal.

NOTE:

Install the Continuous Variable Valve Duration (CVVD) actuator to the specified torque.
If the CVVD actuator is dropped, it may cause internal damage. (Do not reuse)

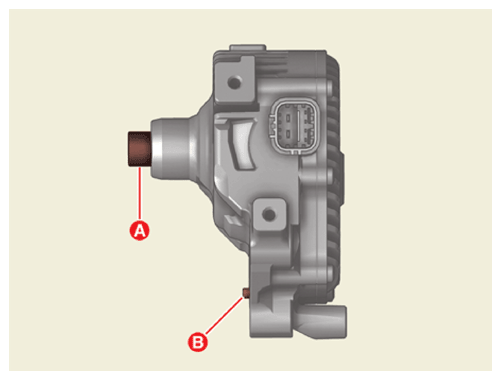

When installing the CVVD actuator, insert dowel pin (B) certainly into the cam carrier hole after inserting the shaft (A).

Courtesy of KIA MOTORS AMERICA, INC.

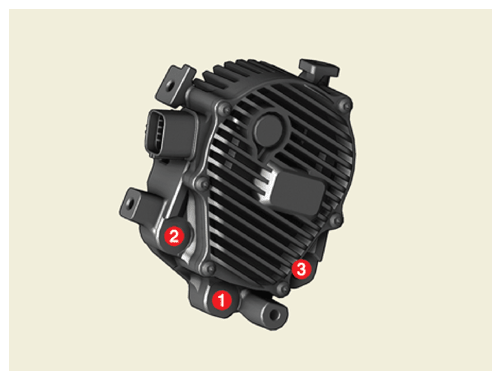

Tighten the bolts in the following order.
(1) Pre-tighten -> (2) Tighten -> (3) Tighten -> (4) Tighten

Fig 1: CVVD Actuator Bolts Tightening Sequence
Courtesy of KIA MOTORS AMERICA, INC.

Perform the "CVVD Intake Adaptation" after replacing the CVVD actuator.
(S/W Management → Engine Control → CVVD learning)
