Removal And Installation: Installation

Install in reverse order of removal.
NOTE:
- Install the Crankshaft Position Sensor (CKPS) to the specified torque.
- If the CKPS is dropped, it may cause internal damage. (Do not reuse)

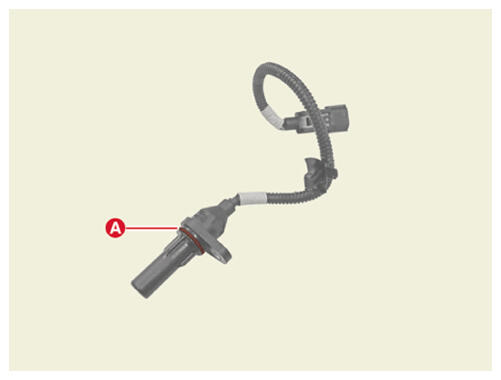

- Apply the engine oil to the O-ring (A).
Courtesy of KIA MOTORS AMERICA, INC.
