Electronic Throttle Control (ETC) Motor

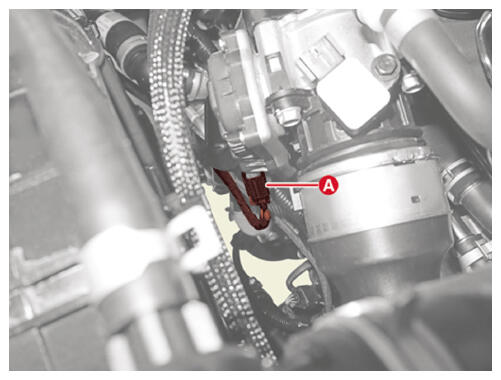

Disconnect the Electronic Throttle Control (ETC) Module connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

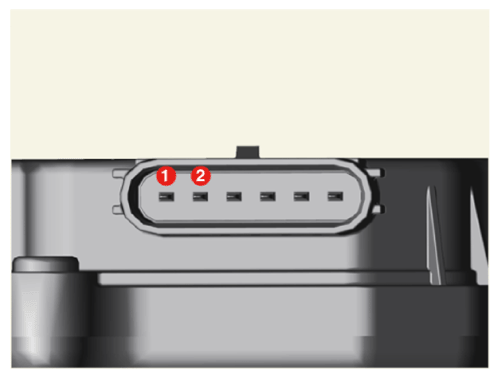

Measure resistance between the ETC module terminals 1 and 2 after disconnecting the connector.

Specified value: 1.287 - 1.573 Ω (Room temperature)

Courtesy of KIA MOTORS AMERICA, INC.

Terminal	Function
1	Motor (+)
2	Motor (-)
