Removal And Installation: Removal

Disconnect the battery negative (-) terminal.

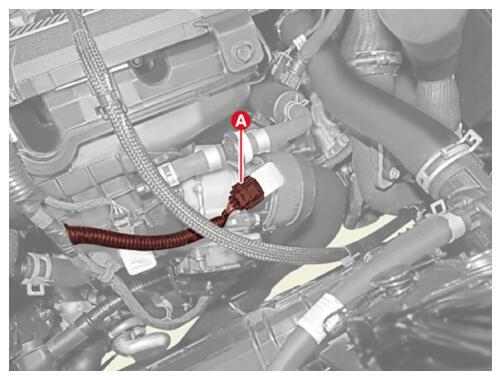

Disconnect the Boost Pressure Sensor (BPS) connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

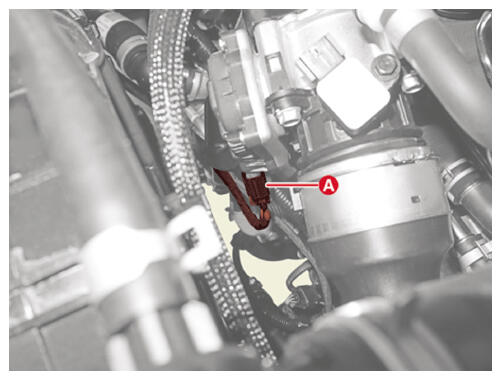

Disconnect the Electronic Throttle Control (ETC) Module connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

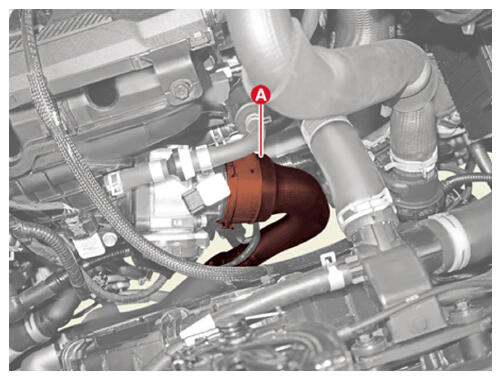

Separate the air intake hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

Information

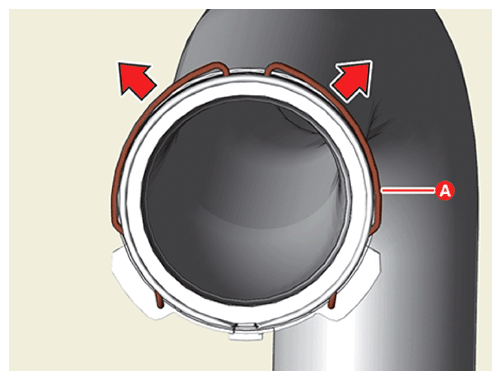

Pull the quick-connector clamp (A) in the direction of the arrow when separating the air intake hose.

Courtesy of KIA MOTORS AMERICA, INC.

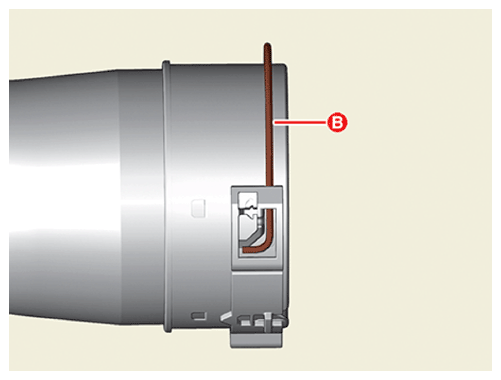

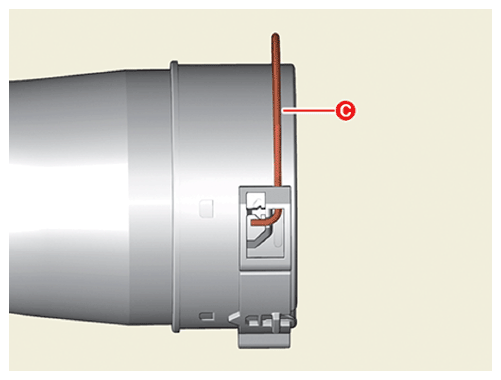

After moving the quick connector clamp (B) to (C) position as shown in the figure below, pull out the air intake hose to separate it.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

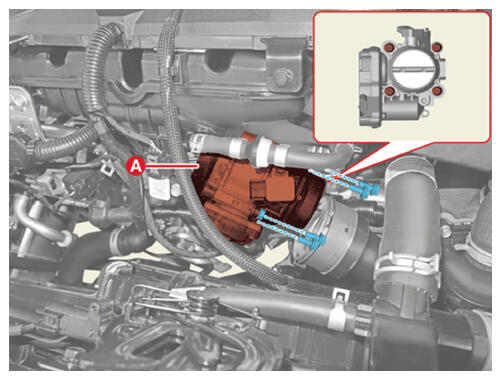

Remove the ETC module (A) by removing the bolts.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

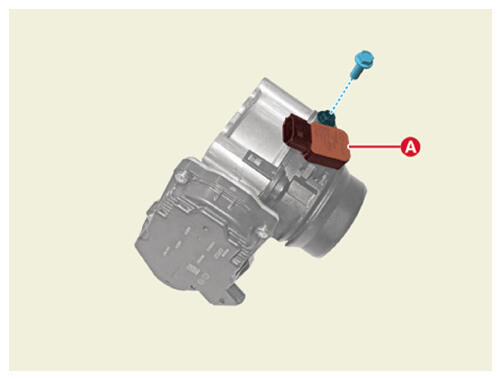

Remove the BPS (A) after removing the bolt.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
