Removal And Installation: Installation

Install in reverse order of removal.

NOTE:

Install the Engine Coolant Temperature Sensor (ECTS) to the specified torque.
If the ECTS is dropped, it may cause internal damage. (Do not reuse)

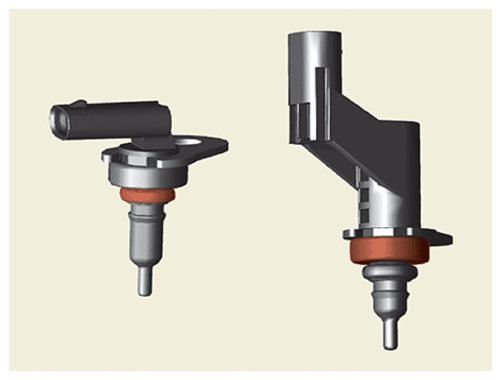

Apply the engine coolant to the O-ring.

G16423634

Courtesy of KIA MOTORS AMERICA, INC.

Install the ECTS by pushing it into the mounting hole when installing it. At this time do not impact the sensor.

Refill with coolant.
(Refer to Engine Mechanical System - " COOLANT ")
