Removal And Installation: Removal

  1. Disconnect the battery negative (-) terminal.
  2. Remove the air cleaner assembly.

    (Refer to Engine Mechanical System - " AIR CLEANER  ")

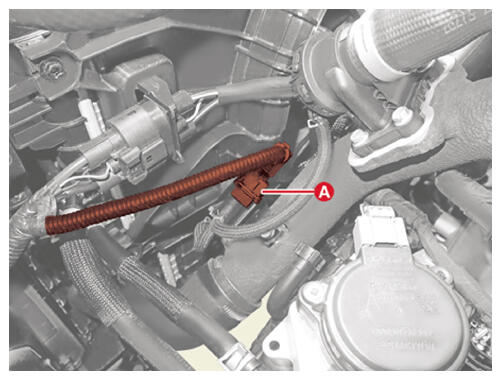

  3. Disconnect the RCV control solenoid valve connector (A).
    G16423669Courtesy of KIA MOTORS AMERICA, INC.

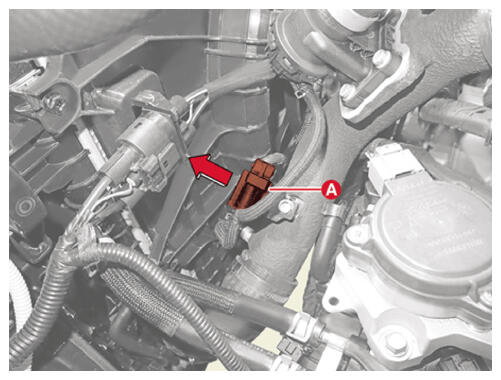

  4. Separate the RCV control solenoid valve (A) by pulling it in the direction of the arrow from the bracket.
    G16423670Courtesy of KIA MOTORS AMERICA, INC.

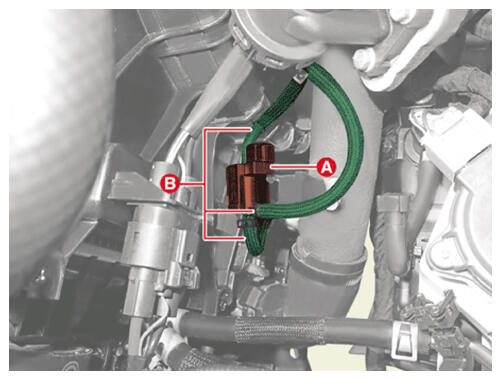

  5. Remove the RCV control solenoid valve (A) after separating RCV hoses (B).
    G16423671Courtesy of KIA MOTORS AMERICA, INC.
