Removal And Installation: Removal

Disconnect the battery negative (-) terminal.
Remove the engine compartment under cover.
(Refer to Engine Mechanical System - " ENGINE ROOM UNDER COVER ")

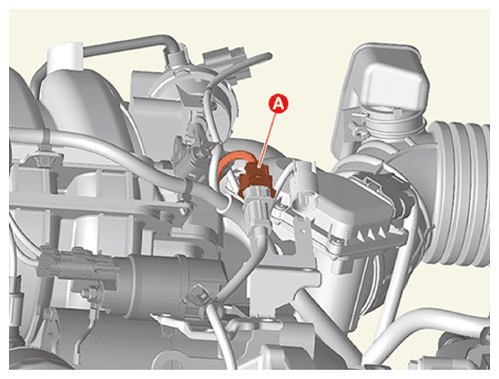

Disconnect the Crankshaft Position Sensor (CKPS) connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

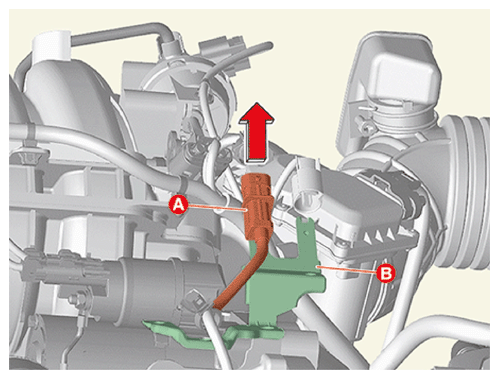

Remove the connector (A) from the bracket (B) by pushing it in the direction of the arrow.

Courtesy of KIA MOTORS AMERICA, INC.

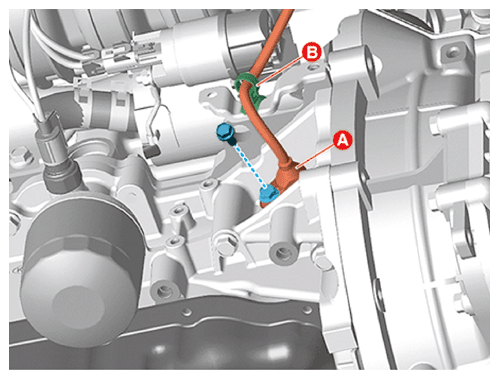

Remove the CKPS (A) and the wiring clip (B) after removing the bolt.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
