Electronic Throttle Control (ETC) Module: Cleaning

Remove the Electronic Throttle Control (ETC) module.
(Refer to Electronic Throttle Control (Etc.) Module - Removal And Installation )

NOTE: Cleaning the ETC after removing it.

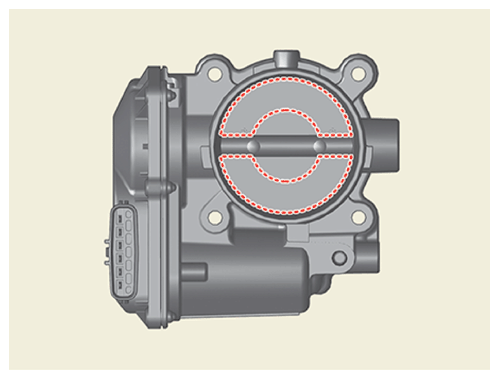

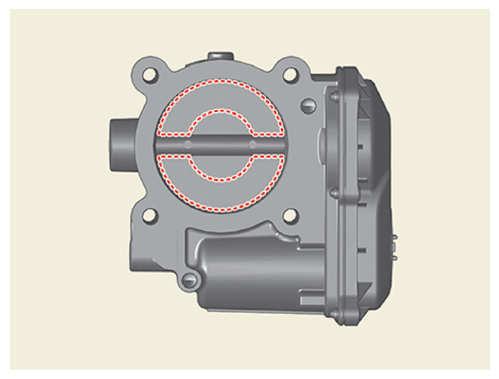

Using a cleaner and soft cloth to clean the contaminated area inside the throttle body.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Be careful not to get foreign matter into the ETC.
- Do not spray cleaning fluid to ETC directly and use a lint free cloth moistened with throttle cleaning fluid.
- Be careful as fingers or cloth may get caught in the valve.
- Be careful not to wipe the coating liquid (displayed area) around the shaft. If the coating liquid is removed, a poor idle control may occur due to the inflow of foreign matters into the shaft inner bearing and an excessive amount of air leaking.
Install the ETC module.
(Refer to ELECTRONIC THROTTLE CONTROL (ETC) MODULE - REMOVAL & INSTALLATION )
