Throttle Position Sensor (TPS)

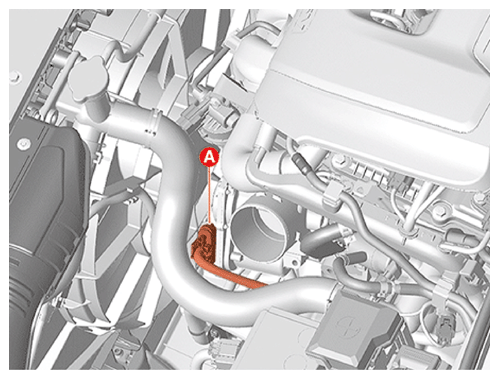

Disconnect the electronic throttle control (ETC) connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Connect the KDS.

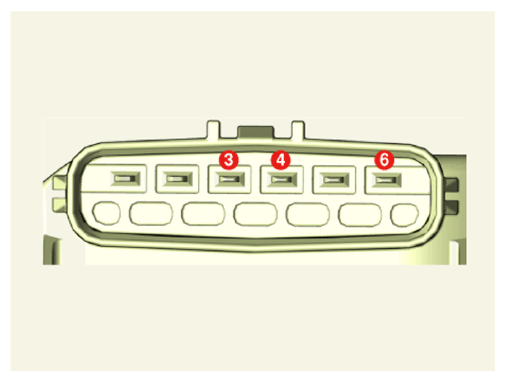

Start the engine and measure the output voltage of TPS 1 and 2 at E.C.P and W.O.T.

Courtesy of KIA MOTORS AMERICA, INC.

Item

Specification

Sensor Output Voltage (V)

Throttle angle (°)

TPS 1

TPS 2

0.5

4.5

0.96

4.05

1.41

3.59

1.87

3.14

2.32

2.68

2.78

2.23

3.23

1.77

3.69

1.32

4.14

0.86

4.60

0.41

4.65

0.35

⁽¹⁾ (0°)

0.5

4.5

⁽²⁾ (86°)

4.41

0.59

⁽¹⁾	Electrically Close Position

⁽²⁾	Wide Open Throttle
