Removal And Installation: Installation

Install in reverse order of removal.

NOTE:

Install the Electronic Throttle Control (ETC) module to the specified torque.
If the ETC module is dropped, it may cause internal damage. (Do not reuse)

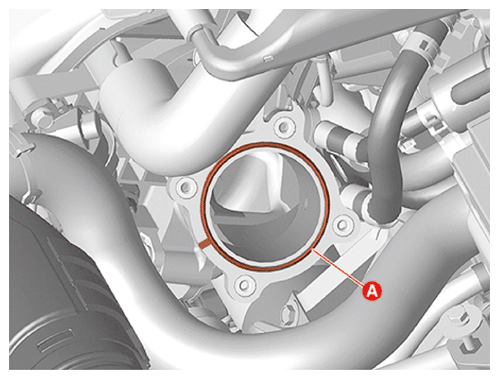

Replace with a new gasket (A) and check to verify that the gasket seats properly before Installation.

G16427100

Courtesy of KIA MOTORS AMERICA, INC.

Reset the Engine Control Module (ECM) adaptive values after replacing the ETC.
(S/W Management → Engine Control → Resetting Adaptive Values)

Information

Refer to the KDS screen for operating conditions and details
Perform the Electronic Throttle Control (ETC) module learning procedure.
(Refer to ELECTRONIC THROTTLE CONTROL (ETC) MODULE - ADJUSTMENT )
