Removal And Installation: Removal

Disconnect the battery negative (-) terminal.
Remove the engine cover.
(Refer to Engine Mechanical System - " ENGINE COVER ")

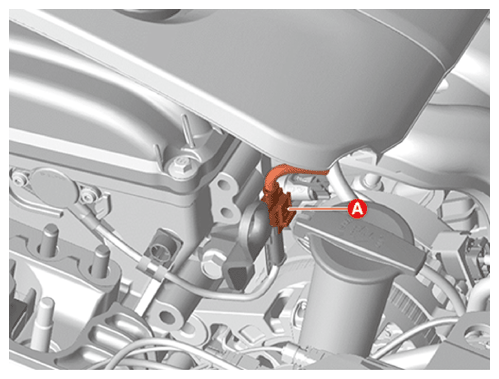

Disconnect the intake middle lock control solenoid connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

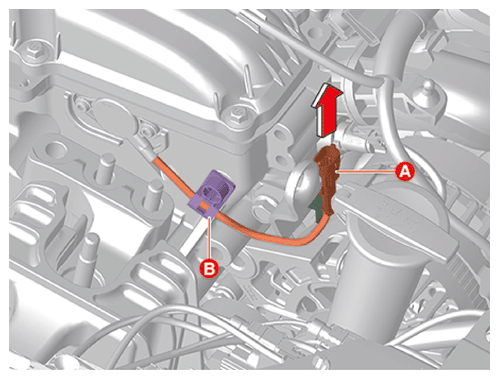

Separate the connector (A) from the bracket and separate the fixing holder (B).

Courtesy of KIA MOTORS AMERICA, INC.

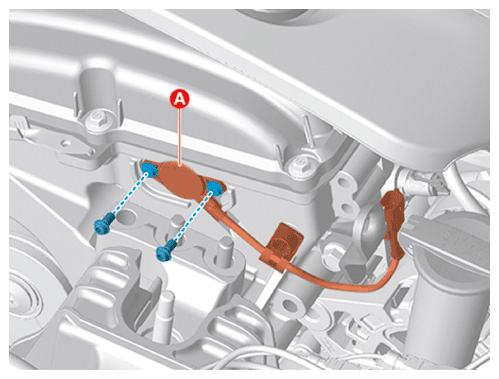

Remove the intake middle lock control solenoid (A) after removing the screws.
Tightening torque:

8.8 - 9.8 N.m (0.9 - 1.0 kgf.m, 6.5 - 7.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
