Rear - Multi Link: Toe

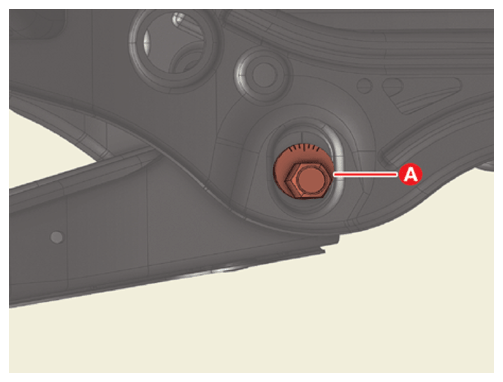

Turn the cam bolt (A) attached with the rear assist arm clockwise or counterclockwise to adjust the toe. Adjust the left and right cam bolts to the same amount.
Total: 0.01° ± 0.2°
Individual: 0.005° ± 0.1°
| Cam bolt | Rotation | Increase/Decrease |
|---|---|---|
| RH | Clockwise | Toe-In |
| LH | Clockwise | Toe-Out |
Information
Adjust the toe using total toe.
