Wheel Alignment Repair Procedures

  1. When using the wheel alignment tester to check the wheel alignment, align the lift's vehicles horizontally.
  2. Set the transmission gear to 'N'.
  3. Inflate the 4 tires to the specified tire pressure.
    TIRE PRESSURE SPECIFICATIONS

    Item Size Specification
    Front Rear
    Tire Pressure 205/60 R16 230 kPa (33 psi) 230 kPa (33 psi)
    215/55 R17 240 kPa (35 psi) 230 kPa (33 psi)
    235/45 R18 230 kPa (33 psi) 230 kPa (33 psi)
  4. Straighten the steering wheel.
  5. Hold the brake pedal depressed using a pedal stopper.

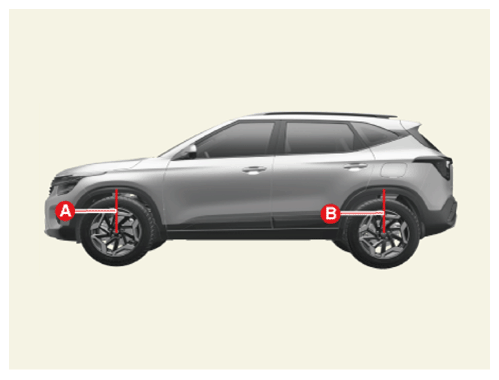

  6. Measure the ride height, which is the distance from the end of the fender to the center of the wheel.

    Ride height

    Front (A):

    2WD: 405 ± 10 mm (15.94 ± 0.40 in.)

    4WD: 412 ± 10 mm (16.20 ± 0.40 in.)

    Rear (B):

    411 ± 10 mm (16.18 ± 0.40 in.)

    G16424776Courtesy of KIA MOTORS AMERICA, INC.
  7. Adjust the alignment.

    (Refer to  Adjustment   )

    NOTE: It is not recommended to adjust the rear alignment of the coupled torsion beam axle using an adjustment shim or washer. Vehicle performance may be poor.
  8. Shake the vehicle up and down after alignment adjustment.
    NOTE: If the figure changes significantly, check the suspension for cracks, tears, wear, and damage to the bushing.
  9. After adjustment, perform the Steering Angle Sensor (SAS) Calibration using KDS.

    (Refer to Steering System - "STEERING ANGLE SENSOR (SAS) CALIBRATION ")
