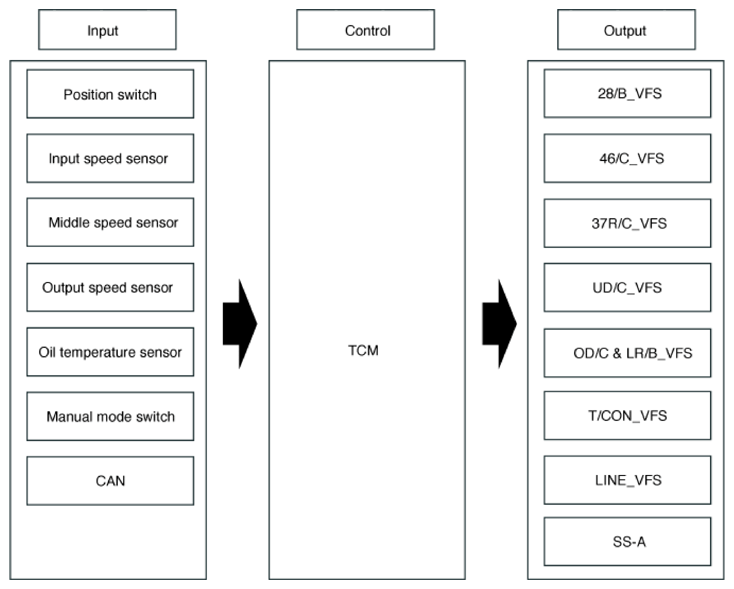

System Flow Chart

Courtesy of KIA MOTORS AMERICA, INC.

*28/B_VFS: 28 Brake Control Solenoid Valve

*46/C_VFS: 46 Clutch Control Solenoid Valve

*37R/C_VFS: 37R Clutch Control Solenoid Valve

*UD/C_VFS: UD Clutch Control Solenoid Valve

*OD/C & LR/B_VFS: OD Clutch & LR Brake Control Solenoid Valve

*T/CON_VFS: Torque Converter Control Solenoid Valve

*LINE_VFS: Line Pressure Control Solenoid Valve

*SS-A_ON/OFF: SS-A Solenoid Valve
